What is a benchtop thermal imaging camera?

A benchtop thermal imaging camera measures the thermal heat of an object on its stand. It then displays an image on a screen that shows the difference between the thermal energy emitted by all objects in the scene. Instead of an image sensor that measures visible light, as is found in a regular digital camera, the thermal camera uses an infrared image sensor. This allows it to measure temperature differences. Through these temperature differences, the camera’s software is able to create an image on the screen. For benchtop applications, usually thermal camera for pcb repair are used to find hot spots on a printed circuit board or other similar electronic device. Hot spots are usually indicative of component failures, electrical shorts, and other circuit board problems. The benchtop thermal imaging camera allows a technician to identify such problems and replace the faulty component without having to dive too deeply into the electrical engineering of the device.

Why use a thermal camera for PCB Repair?

The benchtop thermal camera gives electrical technicians at mobile repair shops and other pcb camera repair stations a shortcut to finding what has gone wrong on a malfunctioning device. Once the technician identifies the bad component all they have to do is replace it with a new one and hopefully the item will function normally.

Why purchase a Teslong TCP100 Desktop PCB Thermal Imaging Camera to use for your PCB repair station camera?

The Teslong TCP100 PCB desktop thermal camera is a high-resolution infrared temperature measurement device. It features a 260 x 200 pixel IR sensor and a 1920 x 1080 visible light sensor. This Teslong pcb camera repair station uses infrared imaging technology and intelligent algorithms to display the operation of the tested motherboard, chip, resistor, and other components in real-time on the software. Temperature data, motherboard thermal field distribution, failure analysis, and more are easy to analyze on your PC screen in 3D.

TCP100デスクトップPCB熱画像カメラ

SKU TSTCP100

Sold out

¥120,000

¥120,000 - ¥120,000

¥120,000

¥106,700

¥106,700 - ¥106,700

¥106,700

• Find hot spots fast - Design for electronics testing, PCB and mobile phone repair

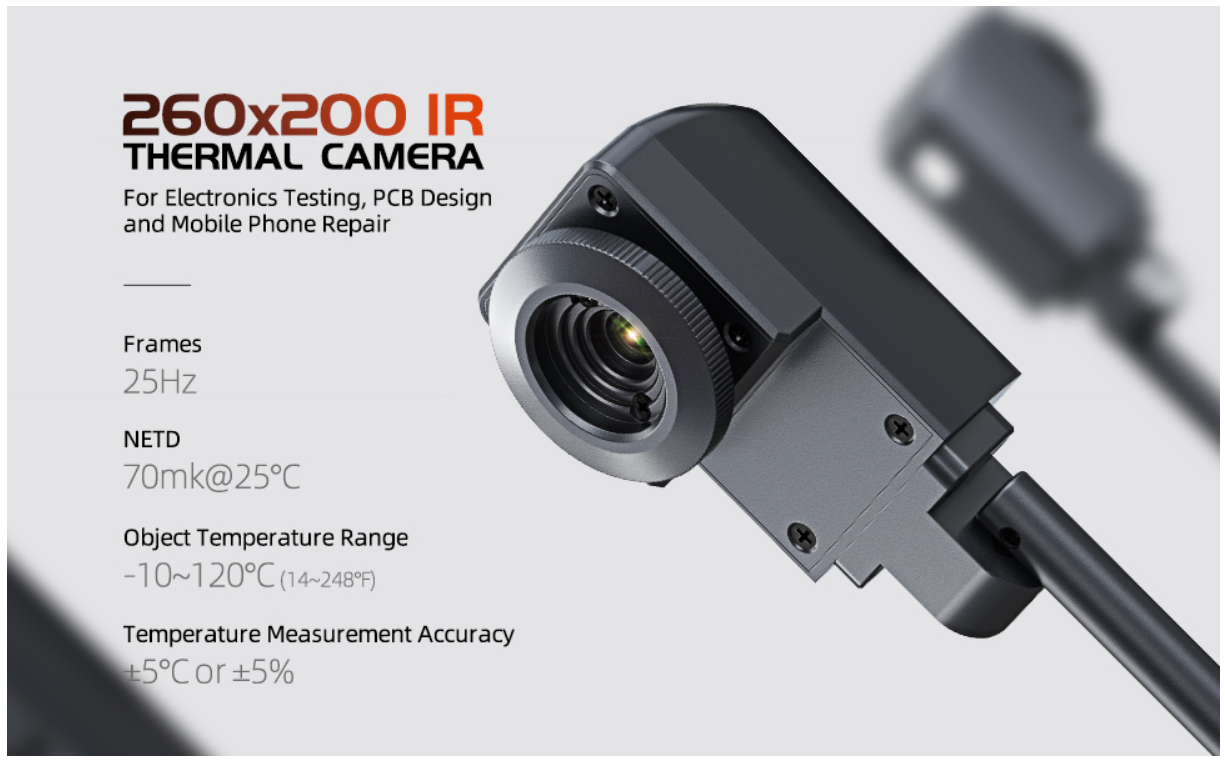

• 260x200 high-sensitivity IR thermal camera

• Machined alloy stand with heat resistant, anti-static bottom plate

• Included PC software can measure temperature of multiple points and record changes over time

数量

• Free shipping on orders over $149
• 12-month warranty
• 30-day money-back guarantee return

Teslong TCP100ベンチトップPCBサーマルイメージングカメラソフトウェアのダウンロードリンク：

https://gto.so/ttd.zip

TCP100 は、によって開発された新世代のPCBA（プリント回路基板アセンブリ）熱分析装置です。 TESLONG。 PCBAアナライザーは、さまざまな回路の欠陥をすばやく検出して、作業効率を向上させます。回路の欠陥には、回路基板の電流漏れ、短絡、コンデンサの故障、回路の経年劣化、コンポーネントの欠陥などが含まれます。

PCBホットスポットを一目で見つける - 複雑なPCBをデバッグするための効果的で時間節約のツール -この260x200の高感度IRサーマルカメラを使用すると、接触することなくすべてのホットスポットをすばやく特定できます。電子修理の「推測ゲーム」に別れを告げる。

PCB修理用に設計 - ハンドヘルド赤外線カメラとは異なり、このデスクトップサーマルカメラには調整可能な金属製のスタンドがあり、ハンズフリー操作を提供するため、サーマルカメラを継続的に保持しなくても作業に集中できます。これは、長時間のテストおよび修復操作に最適です。

リアルタイム深度分析 - WindowsPCでのみ動作します -無料のPCソフトウェアには多くの便利な機能があります。ターゲットの温度を測定できるだけでなく、画像上の複数のポイントまたは領域の温度を測定し、時間の経過に伴う温度変化を記録します。

3Dグラフ機能 - 微妙な温度差を簡単に検出 -このソフトウェアは、平坦な熱画像を3D温度変化グラフに変換して、超小電流の漏れを検出するのに役立ちます。これは、研究開発の専門家にとって非常に便利です。

見ながら修理 - 耐熱性と帯電防止の底板 -PCBAエンジニアが電子テスト中に修理を実行しやすくするために、底板は耐熱性シリコンでできており、作業台を損傷から保護します。また、敏感な電子機器を静電気から保護することもできます。

find pcb hot spots at a glance

Design for electronics testing, PCB and mobile phone repair

TCP100 is a new generation PCBA thermal analyzer developed by TESLONG

The PCBA (Printed Circuit Board Assembly) analyzer quickly detects a variety of circuit defects to improve work efficiency. Circuit defects include circuit board current leakage, short circuit, capacitor breakdown, circuit aging and components defects, etc...

Designed For PCB Repair

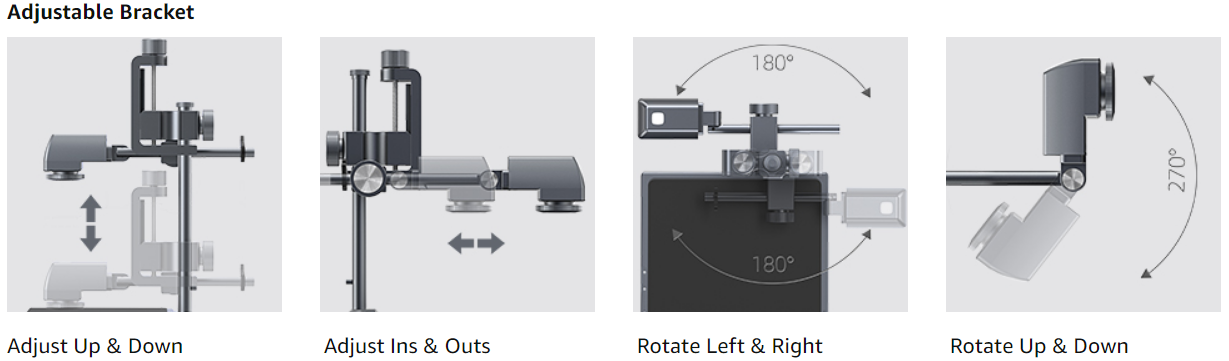

ADJUSTABLE METAL STAND

Offers hands-free operation that allows you to focus on your work without the need to continuously hold the thermal camera. This is ideal for long hours of testing and repair operations.

Find PCB Hot Spots At A Glance

AN EFFECTIVE & TIME-SAVING TOOL TO DEBUG COMPLEX PCBS

With this 260x200 high-sensitivity IR thermal camera, you can quickly identify all of the hot spots without any contact. Say Goodbye To the "Guessing Game" of Electronic Repair.

Real-Time Depth Analysis

ONLY WORKS WITH WINDOWS PC

The free PC software has many useful functions. Not only can it measure the temperature of the target, but it also measures the temperature of multiple points or areas on the image, and records the temperature changes over time.

3D Graph Function

Easy To Detect Subtle Temperature Differences

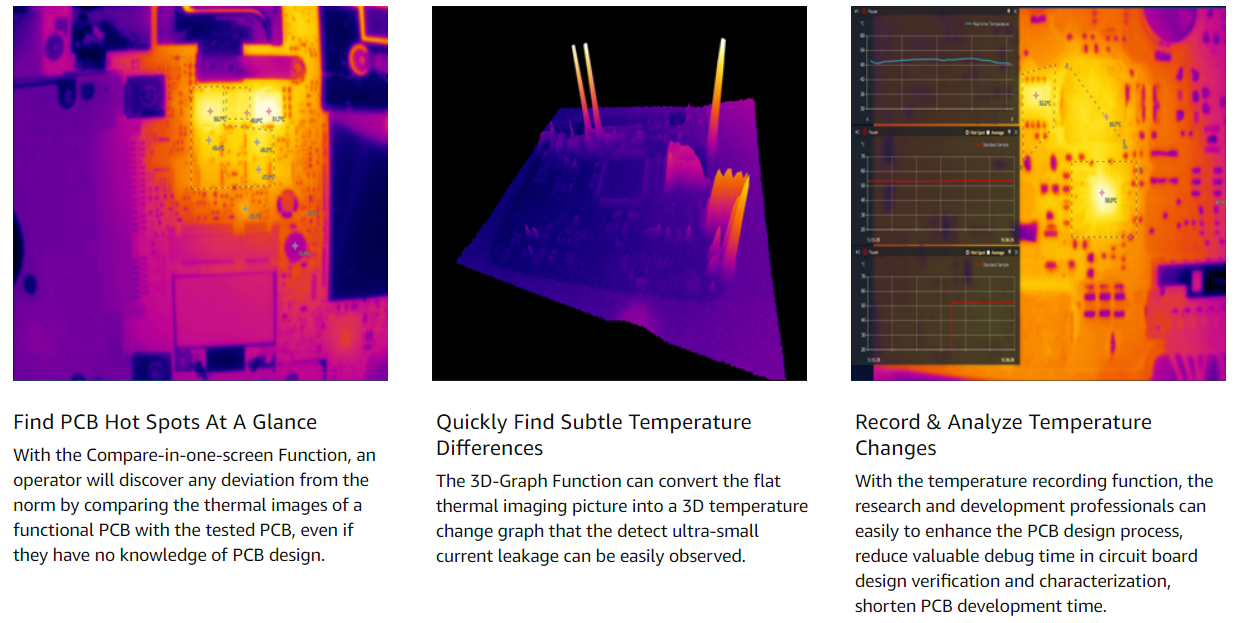

The software can convert the flat thermal imaging picture into a 3D temperature change graph to help detect ultra-small current leakage – very useful for research and development professionals.
