What is an articulating borescope?

An articulating borescope is an inspection device with a steerable and pivoting camera. The tip of the probe has a camera and points in any direction you need to inspect in tight spaces. Articulating means to be connected by joints or hinges. A borescope is an instrument used to inspect inside small spaces. usually with a camera probe. Combine the two, and you have a steerable camera probe ready to go into small spaces for easier diagnostics. Teslong’s household models capture the same high-quality video and images, they just aren't built to withstand the rigors of daily, professional use. One big difference is the camera probe interface - these monitors use a USB-C plug to connect to the camera probe instead of an aviation connector. These camera cables are still sealed to IP67 spec, but they feel more flexible and are thinner, which can actually be an advantage when accessing tight spaces.

What are articulating borescopes used for?

Most articulating borescopes are used for mechanical or pipe inspections. A variety of industries can use this type of scope, including aircraft, vehicle, HVAC, power generation and electricity, energy, gas, oil, maintenance, manufacturing, and mining. This useful tool can help with home, DIY, car, and motorcycle repair as well.

Can articulating borescopes take videos and photos?

Yes, articulating borescopes can record video and photos. Many can capture live video and high-definition images for on-the-spot inspections. The options that connect to a smart device can capture videos and images and store them on your phone or tablet. Most offer a preview mode, playback mode, and a menu mode for easy application and help to store both. Check the resolution of the camera before purchasing and make sure it offers the quality you want. Also, if you are performing live inspections make sure you get a borescope with a large enough screen to see everything well. If you want a larger screen, consider choosing one you can use connected to a smart tablet for a bigger view.

How do you use an articulating borescope?

Before you can use the borescope, you will need to charge the device or ensure it has the necessary batteries or wall plugs. After charging, keep the probe tube straight and extended for insertion into the inspection area. Before using, check the inspection probe for dust, scratches, defects, or damage to make sure you see the inspection area clearly. Insert the camera probe into the area of inspection, gently taking your time. Do not use force, and make sure the camera is on so you can see where you are going. Once you have reached the area you desire, you can now articulate or move the camera as needed. Some articulating borescopes allow you to lock the bending angle to make sure the camera stays in place. If so, remember to unlock the bending angle before removing the tubing and camera from its location. To remove the borescope, pull slowly and gently without force. After use, make sure to wash the probe and cord to remove any dirt. Use a soft cloth on the camera to prevent scratching the lenses. While many articulating borescopes can handle some heat, avoid using it in high temperatures to ensure the longevity of the device. Store the borescope in a case in its natural, relaxed position in a cool, dry, and safe location. Do not submerge a borescope unless it says it’s one hundred percent waterproof, as this can cause damage and may cause electrocution. Also, never insert the probe into a moving part or component. Always operate the borescope within the temperature range advised by the manufacturer.

Benefits of using an articulating borescope?

Articulating borescopes provide visual access to small areas without the need to remove parts to gain access to hard-to-reach areas. As a result, the technology allows you to find issues faster and with less work. Moreover, the articulating head camera gives you a broader range of vision so you can inspect a bigger area, even in tight spots. Not all applications will benefit from a moving head, but the articulating feature usually isn’t a hindrance. With the wide range of uses, an articulating borescope can provide a very thorough inspection without costly disassembly. Furthermore, some areas are very tight even when pulled apart, making them difficult to see inside. Overall, the tool can reduce the cost of inspection and maintenance while improving how items work.

Articulating borescopes vs. endoscopes - key differences?

An endoscope is traditionally the medical term used to describe a tool for doctors to aid in surgery. Frequently though, the term endoscope is being interchanged with the term borescope. They both do the same things, but the ones used for medical purposes are built to much higher standards. Both endoscopes and borescopes are available with articulating heads–this allows them to see a larger area than with a static camera probe. Both provide a long flexible cord that can wind into tight spaces. Also, both provide a camera with light so the operator can see in dark places and also take photos and video. Each can also work with a built-in screen or a smart device.

Why choose a Teslong articulating borescope?

Teslong provides a variety of endoscopes, borescopes, otoscopes, and accessories to help solve problems, save time and also save money. We spent decades creating and developing innovative digital products to help people solve problems and make life easier and better. Our focus is on manufacturing and exporting high-quality scopes for both consumer and industrial uses with state-of-the-art technology for affordable prices. Try one of our borescopes, and you will have thirty days to try and return. We stand by our products and will work with you to fix any problems. Furthermore, you can reach us online, by phone, or with live chat to get all the information and assistance you need. We ship worldwide and even offer rewards to help our customers enjoy their products and get the most use from their purchase.

4.5インチスクリーンを備えたTD450関節式検査カメラ

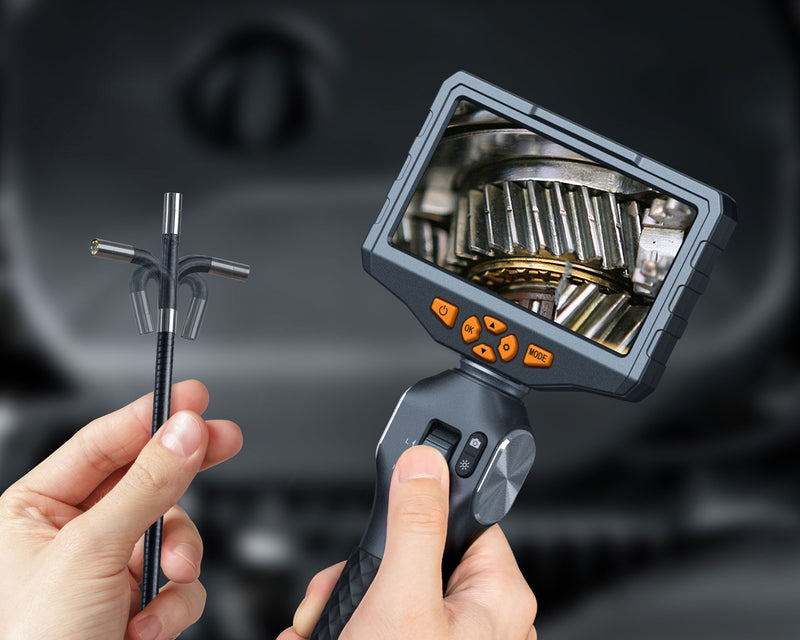

All-In-One Endoscope That Can Look Around Corners

SKU TD500D62L1.55

¥42,000 - ¥52,500

¥42,000

¥52,500

¥42,000 - ¥52,500

¥52,500

• Two-Way 210° Articulation on A 5.08-foot Probe
• Probe Is Available in 2 Diameters - 0.25 or 0.33 Inch
• 720P CMOS Image Sensor for Excellent Detail
• LED Ring Lights Illuminate the Darkest Areas

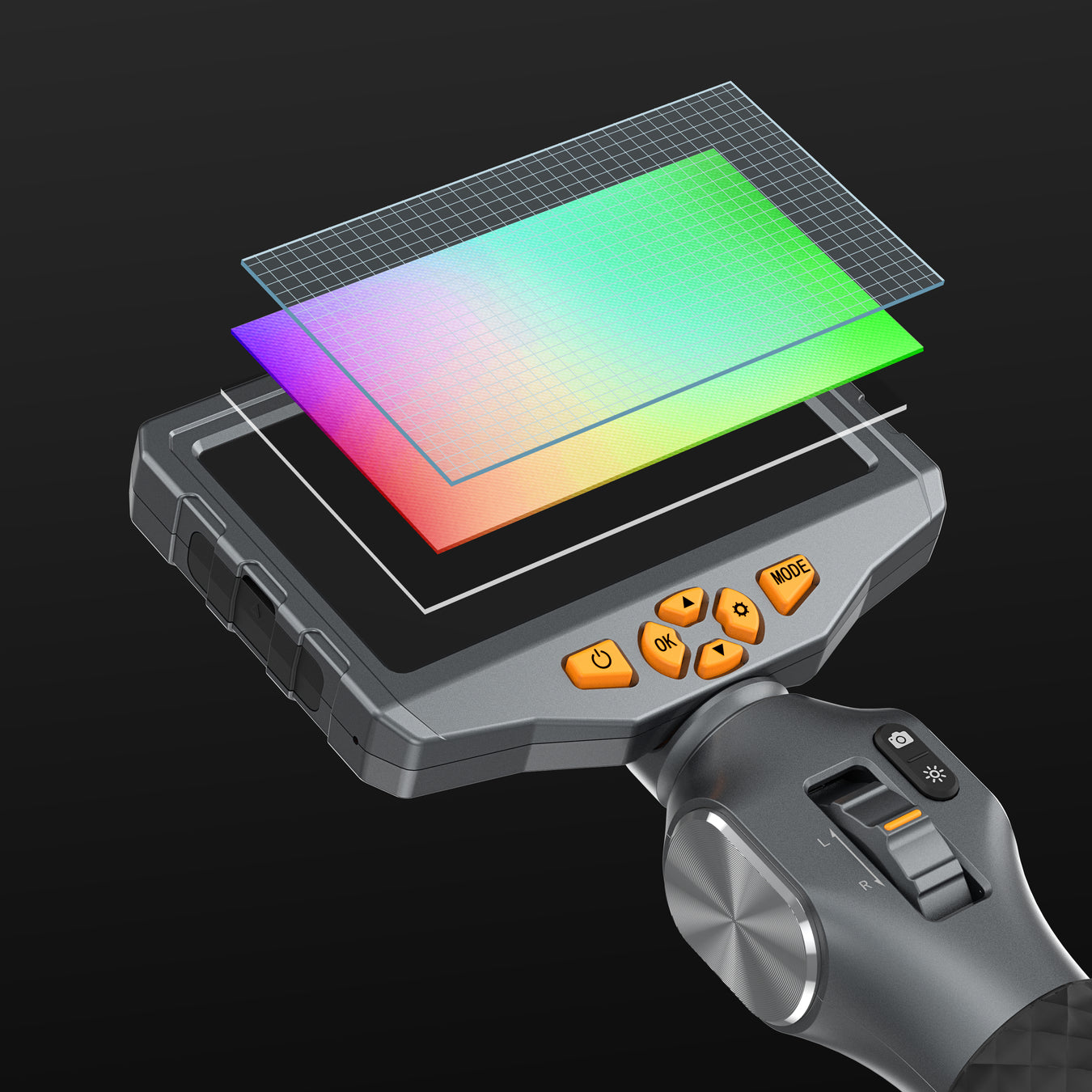

• A 5-inch IPS LCD Screen Powered by a 3000 mAh Lithium Battery
• 32GB Micro SD Card Included to Store Photos & Video

Probe Diameter： 0.24 in (6.2 mm) diameter

0.24 in (6.2 mm) diameter

0.33 in (8.5 mm) diameter

数量

• Free shipping on orders over $149
• 12-month warranty
• 30-day money-back guarantee return

テスロン TD450 関節式内視鏡検査カメラは、携帯型のハンドヘルド多機能検査システムです。関節構造により、プローブは手で制御してさまざまな方向を見ることができ、エンジンシリンダー、飛行機の翼の内側、計器盤の後ろ、ブレーキシステムの内側の検査などの多くのアプリケーションに適しています。仕様：カメラプローブ：2.0メガピクセルプローブセンサー：1/5 "CMOSプローブ視野角（FOV）：60°被写界深度（DOF）：45-70mmプローブ回転角度：180°プローブ照明モード：8つの明るいLEDライトプローブ径：8.5mmプローブチューブ長さ：3mビデオ解像度：MP4（1920x1080）画像解像度：JPG（1920x1080）動作温度：-10〜50℃（90℃以下）

2 仕方 180° アーティキュレーション - レスポンシブアーティキュレーションにより、スコープの先端を正確な動きで制御できるため、ターゲット領域にすばやく移動し、ロック機能を使用して所定の位置に留まることができます（このプローブは防水ではないことに注意してください）。

簡単に 使用する - 4.5インチIPSLCDモニターには、6000mAhの充電式バッテリーが内蔵されており、箱から出してすぐに使用できます。スマートフォンを使用してWIFIに接続したり、ドライバーソフトウェアやアプリをダウンロードしたりする必要はありません。

1080P HD - 来ると 2.0MP CMOS センサー - この内視鏡は、優れた写真とビデオの詳細をキャプチャできます。 LEDリングライトは、暗い条件下で鮮明な画像を確保し、細部を復元します。

取る写真＆ ビデオ 録音 - 検査カメラには、JPG画像とAVIビデオ録画をサポートする32GBのmicroSDカードが組み込まれています。マイクとスピーカーを備えており、動画撮影時に音声を録音できるので、後で問題を確認するのに便利です。

何ですか の THE 箱 - TD450D85L1関節式産業用内視鏡、USBケーブル、キャリングケース、ユーザーマニュアル、安心の12か月保証、フレンドリーなカスタマーサービス！

Two-way articulation with 5-inch monitor

Teslong TD500 Articulating Endoscope Inspection Camera

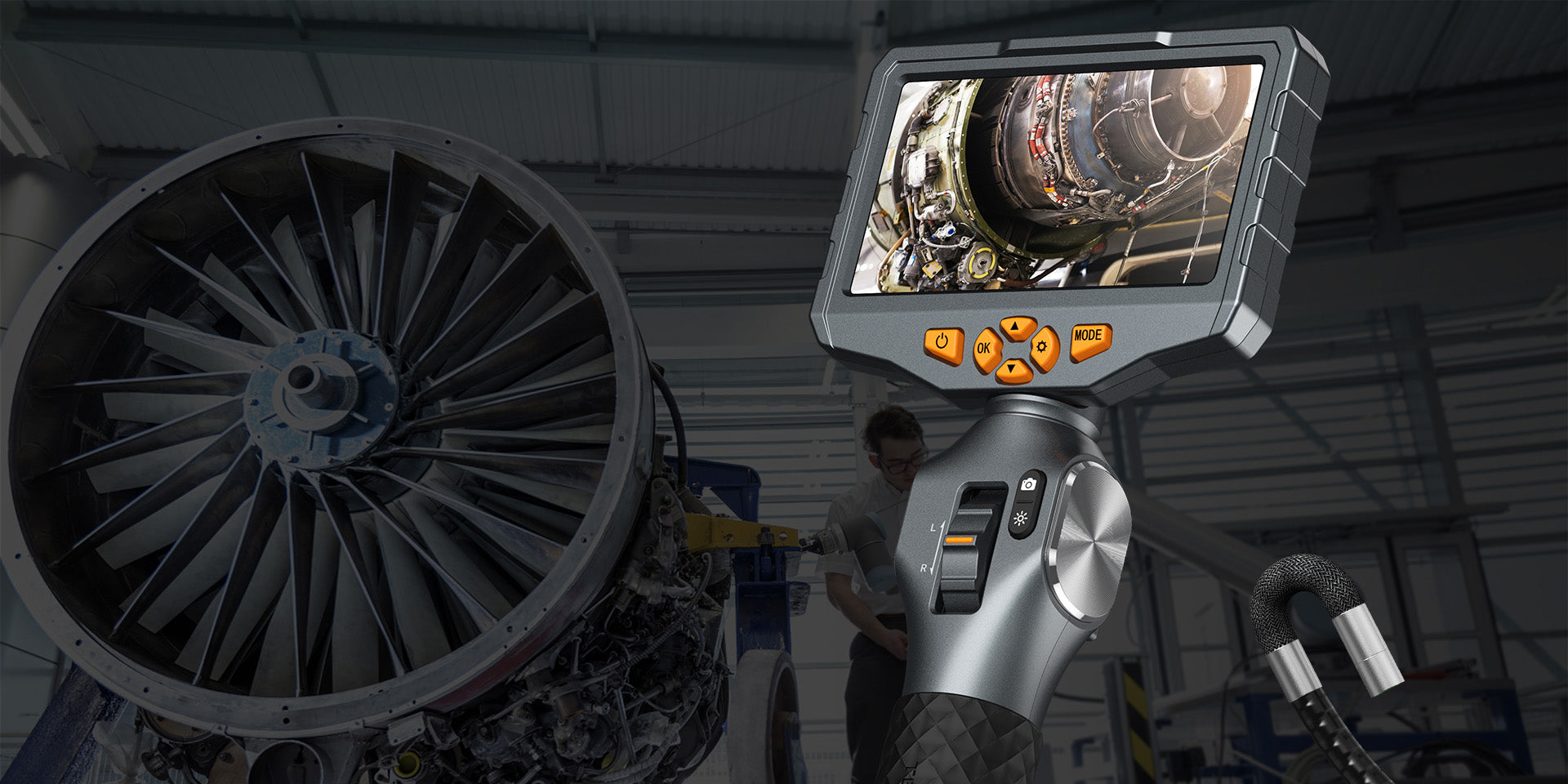

A portable, handheld, multi-function inspection system. With its articulating camera, the probe can be controlled by hand to look in different directions. This is perfect for many applications, such as inspecting engine cylinders, inside airplane wings, behind instrument panels, and inside brake systems.

The inspection probes are available in two different diameters - 8.5mm (0.33in) or 6.36mm (0.25in). The 8.5mm variant is stiffer and holds its shape better while the 6.36mm variant is much more flexible and easier to push through tight areas.

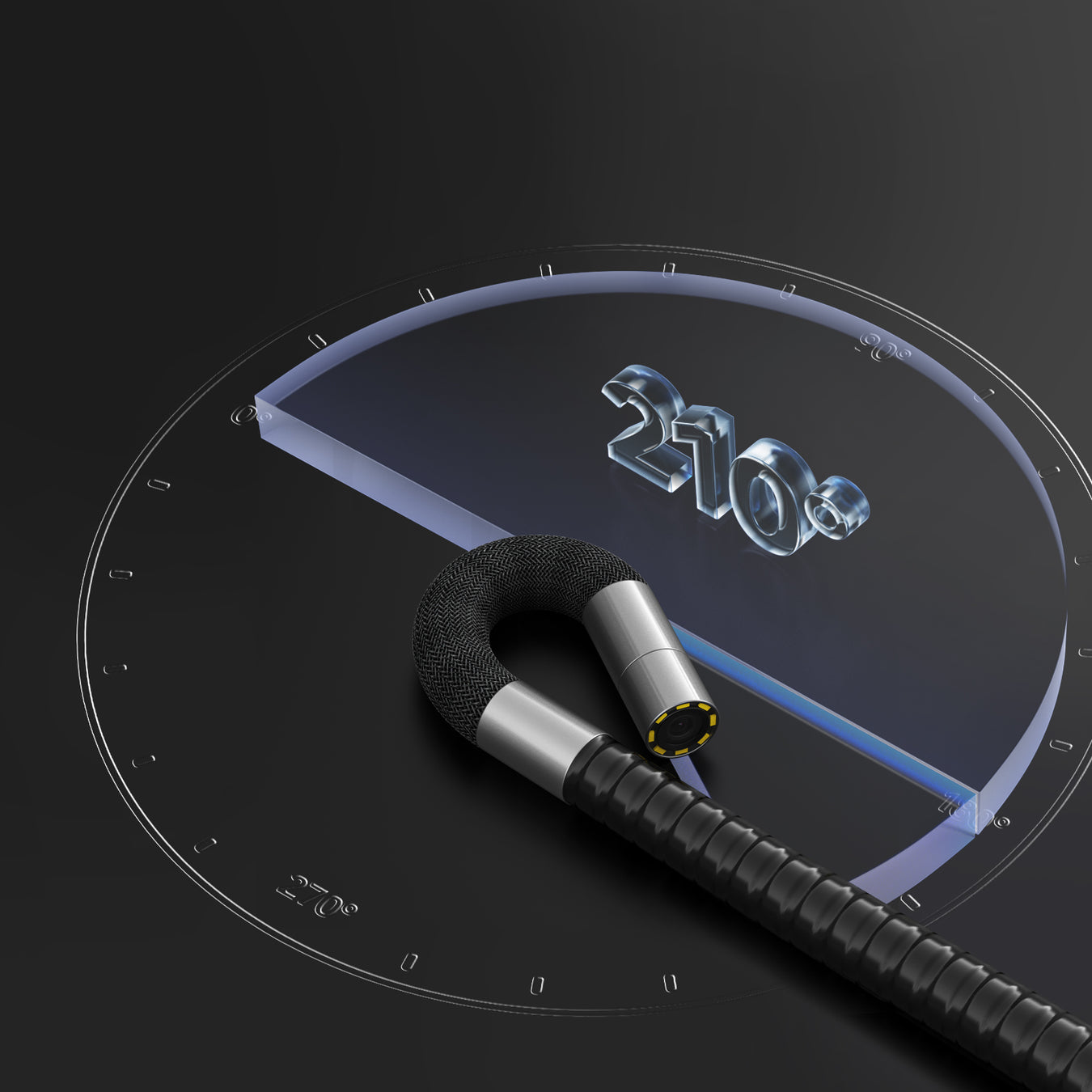

TWO-WAY 210° ARTICULATION

Responsive articulation enables you to control the scope’s tip with precise movement so that you can navigate to your target area quickly and stay in position with locking capability.

Designed for professionals

Built with high-quality, durable materials. A built-in 3000mAh rechargeable battery, works right out of the box. No need to download any driver software or apps.

Wi-Fi Remote viewing; TAKE PICTURES & RECORD VIDEOS

Wi-Fi connection to smartphones and tablets is convenient for teamwork.

720P HD - Comes with 1.0MP CMOS Sensor.

The LED ring light, ensures clear images and restore details under dark conditions.

A built-in 32GB microSD card supports JPG image and AVI video recording.

A built-in microphone can record voice when shooting video, which is convenient for reviewing problems later.

Articulating Borescope

Easy to navigate around obstacles

High quality images - see more, see clearly

The fantastic image quality gives you a detailed and accurate inspection - this is critical for making clear decisions in a demanding work environment.

Professional Inspection Camera Comparison

-
-	Shop Now	Shop Now	Shop Now	Shop Now	Shop Now
Model Number	NTS500 50-Foot Plumbing	NTS500	NTS300	NTS430	TD500
Price	Starts at $289.99 USD	Starts at $199.99 USD	Starts at $105.99 USD	Starts at $105.99 USD	$279.99 USD
Use	Professional	Professional	Professional	Professional	Professional
Type	Tablet	Tablet	Trigger Grip	Trigger Grip	Articulating
Screen Size	5-inch	5-inch	5-inch	4.3-inch	5-inch
Screen Resolution	1280x720 px	1280x720 px	854x480 px	854x480 px	1280x720 px
Screen Panel Type	IPS	IPS	IPS	IPS	IPS
Tempered Glass on Screen	✓	✓	✓	✓	✓
Interchangeable Camera	✓	✓	✓	✓	X
Probe Type	Plumbing Specific 50-Foot thread-on connector	Reinforced metal with thread-on connector	Reinforced metal with thread-on connector	Reinforced metal with thread-on connector	Bendable metal with articulating tip

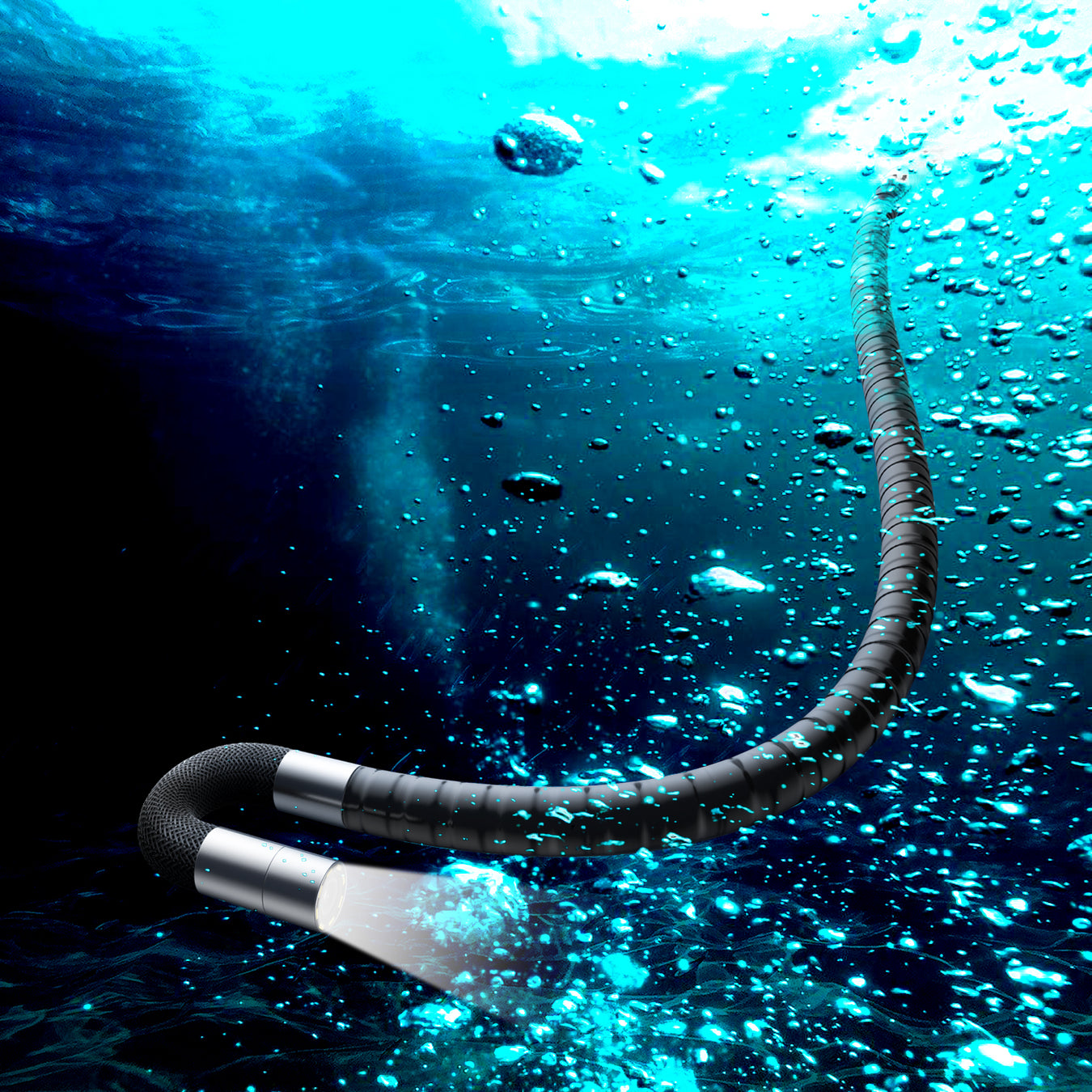

IP Rating	IP45 monitor, IP67 probe	IP45 monitor, IP67 probe	IP45 monitor, IP67 probe	IP45 monitor, IP67 probe	Camera probe only IP67
Image Capturing Resolution	1920x1080 (JPG)	1920x1080 (JPG)	1920x1080 (JPG)	1920x1080 (JPG)	1280x720 (JPG)
Video Recording Resolution	1280x720 (AVI)	1280x720 (AVI)	1280x720 (AVI)	1920x1080 (AVI)	1280x720 (AVI)
Memory Card	32GB microSD Card (Installed)	32GB microSD Card (Installed)	32GB microSD Card (Installed)	32GB microSD Card (Installed)	32GB microSD Card (Installed)
Built-in Battery	3500mAh lithium-ion battery	3500mAh lithium-ion battery	5000mAh lithium-ion battery	3000mAh lithium-ion battery	3000mAh lithium-ion battery
Battery Working Hours	4.5 hours	4.5 hours	4 hours	4.5 hours	4 hours
Flash Light	✓	✓	✓	✓	X
Microphone & Speaker	✓	✓	✓	✓	✓
Wi-Fi	X	X	X	X	✓
Split-Screen View	X	X	X	✓ (8mm probe)	X
