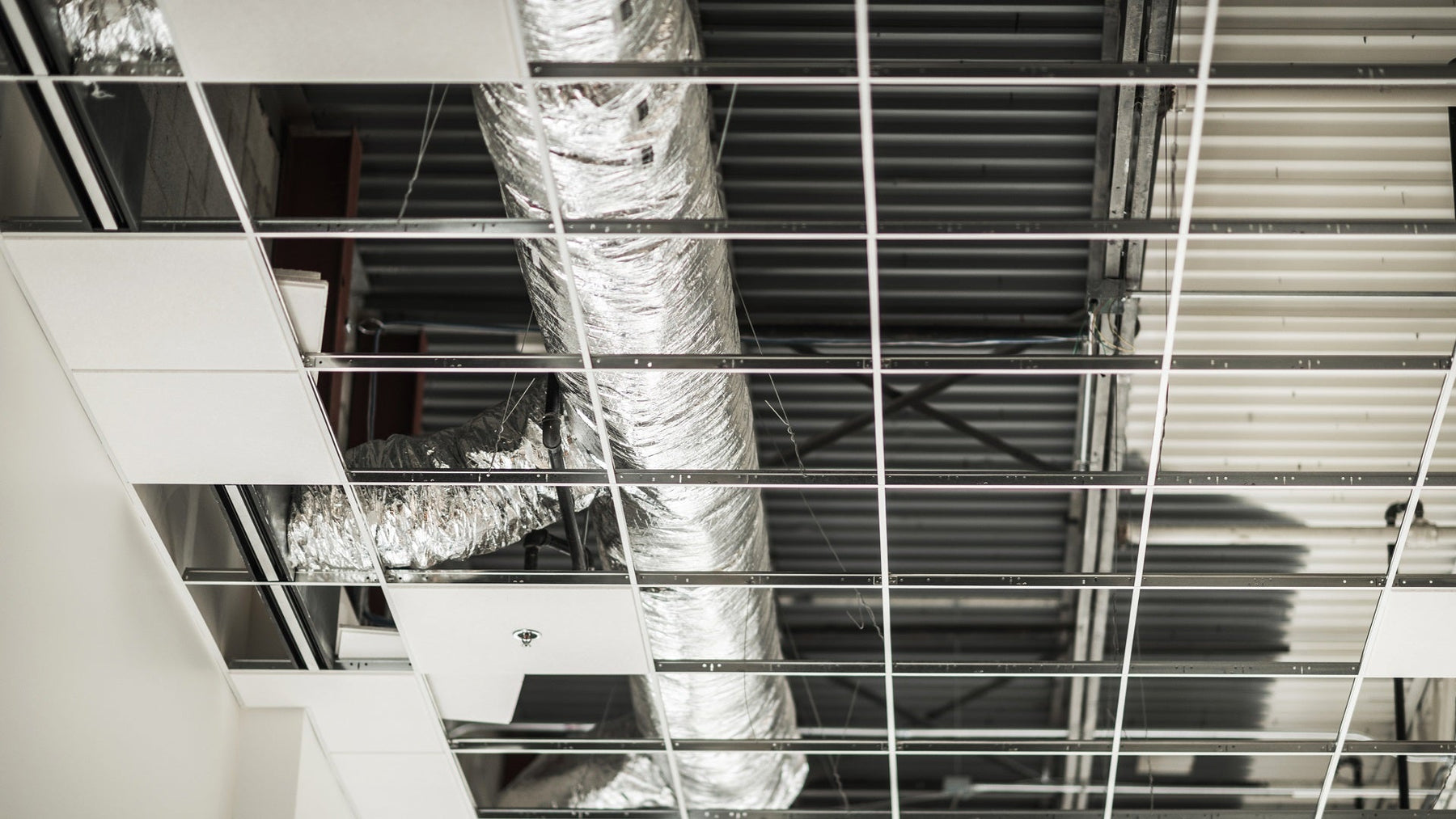

Using an Inspection Camera for HVAC Ducts

Maintaining a healthy HVAC system is crucial for ensuring optimal air quality, energy efficiency, and the comfort of occupants. One often-overlooked aspect of HVAC system maintenance is the inspection of the air ducts.

Traditional methods of inspecting ducts can be inefficient, costly, and sometimes ineffective, which is why using an inspection camera for HVAC ducts has become an essential tool for professionals.

This advanced technology allows for easy, non-invasive inspections of air ducts, identifying potential issues that could hinder the performance of your HVAC system.

In this blog post, we will explore how an air duct camera works, the benefits of using it, and why Teslong's inspection cameras are the ideal choice for HVAC duct inspections.

What Is an Inspection Camera for HVAC Ducts?

An inspection camera for HVAC ducts, often referred to as a ductwork camera or duct inspection camera, is a specialized tool designed for inspecting the interior of air ducts. These cameras are typically attached to a long, flexible cable that can be fed into ducts, allowing the operator to see inside hard-to-reach areas in real time. The camera transmits high-resolution video to a screen, enabling HVAC professionals to identify issues such as blockages, leaks, or damage without needing to dismantle the ductwork.

Equipped with features such as LED lighting and adjustable angles, these cameras provide clear, detailed views of the duct system’s condition, ensuring a comprehensive inspection.

How Does an Inspection Camera Help with HVAC Duct Inspections?

An inspection camera helps with HVAC duct inspection by providing a clear, visual view of areas that are otherwise difficult or impossible to inspect manually. These cameras can reach deep into the ducts, allowing technicians to identify problems such as:

• Dirt and debris buildup: Dust, dirt, and other debris can accumulate in ducts, potentially affecting airflow and indoor air quality.


• Leaks or cracks: Small leaks in ductwork can cause air loss, reducing system efficiency and driving up energy costs.


• Blockages: Items such as nesting animals or objects falling into the ducts can obstruct airflow.


• Corrosion or mold growth: In humid environments, ducts can become breeding grounds for mold or rust, which can lead to serious health problems.


With a duct inspection camera, HVAC professionals can pinpoint the exact location of these issues, providing a more efficient and accurate diagnosis. This allows for targeted repairs or cleaning rather than guesswork or unnecessary replacements.

How to Choose an Inspection Camera for HVAC Ducts

When selecting an HVAC camera inspection tool, there are several important factors to consider:

1. Camera Resolution: High-resolution cameras offer better image quality, making it easier to spot small issues such as cracks or corrosion. Choose a camera with at least 720p or higher resolution for clear and detailed images.


2. Cable Length and Flexibility: The longer and more flexible the cable, the easier it will be to navigate through long or twisted ductwork. Look for a ductwork camera with a flexible, durable cable to reach all areas of the HVAC system.


3. Lighting: Proper lighting is essential for seeing inside dark ducts. Many inspection cameras come with built-in LED lights that can illuminate the inside of ducts, ensuring clear visibility. Adjustable lighting levels can be helpful for varying conditions.


4. Screen Display: A larger, high-quality screen allows for easier viewing and reduces the need for constant adjustments. Many modern inspection cameras feature screens with the ability to capture images or record video for later review.


5. Portability: If you plan on using the inspection camera for multiple jobs, portability is an important consideration. Look for a camera that is lightweight and easy to transport.


6. Durability: HVAC environments can be tough on tools, so ensure that the camera is rugged and can withstand the conditions of HVAC ductwork, including moisture, dust, and physical bumps.


How to Inspect HVAC Ducts Using an Inspection Camera

Inspecting HVAC ducts with an air duct camera is a straightforward process. Here are the general steps to follow:

1. Preparation: Begin by turning off the HVAC system. This ensures safety and prevents airflow during the inspection. Clean the access points to the ducts, such as vents or registers, to ensure smooth insertion of the camera.


2. Insert the Camera: Carefully insert the inspection camera’s cable into the duct through the access point. Make sure the camera is directed properly, and guide it into the ductwork.


3. Inspect the Ductwork: As you move the camera through the ductwork, observe the video feed on the display screen. Take note of any areas of concern such as blockages, leaks, or signs of corrosion.


4. Document Findings: Many modern inspection cameras, including Teslong’s, allow you to capture images or record videos of the inspection. This can be extremely helpful for future reference, repairs, or customer reports.


5. Complete the Inspection: Once the inspection is complete, carefully withdraw the camera cable, ensuring that no debris gets caught. Review the footage and make recommendations for necessary repairs or cleaning.



Detecting Common HVAC Duct Issues Using an Inspection Camera

Using a duct inspection camera helps identify a variety of common issues within HVAC systems, including:

• Duct Leaks: A common problem in older systems, duct leaks can reduce system efficiency by allowing air to escape. Inspection cameras can pinpoint these leaks, enabling precise repairs.


• Dirt and Debris: Dust, dirt, and even rodent droppings can accumulate inside ducts, reducing airflow and contaminating the air inside the building. Cameras can show exactly where the buildup is located.


• Mold and Mildew: HVAC systems in humid environments are prone to mold growth, which can cause health problems. An inspection camera allows you to detect mold and mildew in ducts before they become a serious issue.


• Structural Damage: Over time, ducts may become damaged due to wear and tear or external factors. Cracks or corrosion can be easily spotted with an air duct camera, allowing for timely repairs.



Why Use an Inspection Camera for HVAC Duct Cleaning?

An air duct cleaning camera is essential for thoroughly inspecting ducts before and after cleaning. Without a visual inspection, it's hard to know whether all debris has been removed or if there are any hidden issues within the ductwork. Using a camera allows technicians to:

• Verify the effectiveness of the cleaning process


• Identify hidden contaminants or areas requiring more cleaning


• Document the cleanliness of ducts for clients


This level of transparency helps ensure that ducts are properly cleaned and maintained, leading to healthier indoor air quality and improved system performance.

How Often Should You Inspect Your HVAC Ducts?

The frequency of HVAC duct inspections depends on several factors, including the size of the system, how often it’s used, and the environment in which it operates. In general:

• Residential Systems: Duct inspections should be done every 2-3 years, or sooner if there are signs of reduced airflow, poor air quality, or unusual sounds.


• Commercial Systems: High-use systems in commercial buildings should be inspected annually, as they tend to accumulate more debris and suffer from more wear.


Regular inspections can help detect problems early, preventing expensive repairs and improving HVAC system efficiency.

Benefits of Using an Inspection Camera for HVAC Duct Inspections

Using an HVAC duct inspection camera offers several advantages over traditional inspection methods:

• Non-invasive: Inspection cameras provide a way to see inside ducts without disassembling the system, saving time and minimizing disruption.


• Accurate Diagnosis: The visual evidence provided by the camera allows for a more accurate diagnosis of issues, leading to better-targeted repairs.


• Cost-effective: By identifying problems early, inspection cameras help prevent costly repairs and extend the life of your HVAC system.


• Efficiency: Inspecting ducts with a camera is faster and more efficient than manual methods, allowing HVAC professionals to complete jobs more quickly.



How an Inspection Camera Improves HVAC System Efficiency

Using an HVAC camera inspection can significantly improve system efficiency by identifying areas that are causing airflow problems, such as blockages or leaks. Fixing these issues can help:

• Improve airflow


• Increase energy efficiency


• Reduce operating costs


• Enhance the overall performance of the HVAC system


A well-maintained HVAC system ensures optimal comfort while minimizing energy usage.

How to Detect HVAC Duct Leaks Using an Inspection Camera

Duct leaks are one of the most common causes of HVAC inefficiency. An inspection camera makes it easy to spot leaks by allowing you to visually inspect the ductwork. By navigating the camera through the ducts, you can identify holes, cracks, or loose joints that are allowing air to escape. This allows for prompt sealing of leaks, improving system efficiency and comfort.

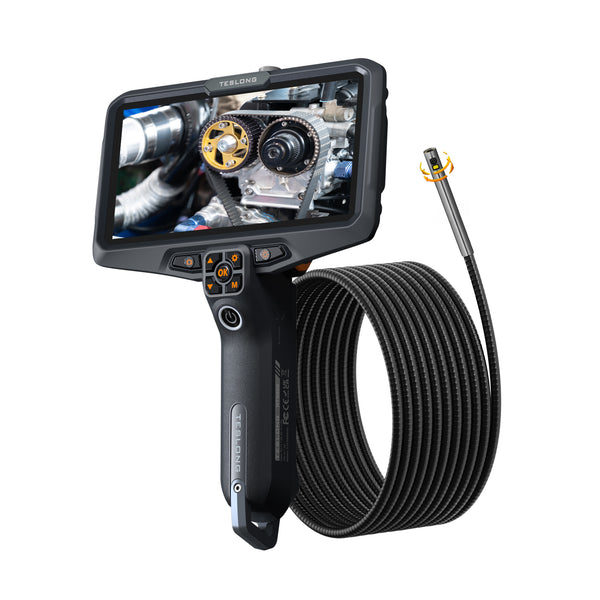

Why Teslong Inspection Cameras Are Perfect for HVAC Duct Inspections

Teslong's ductwork cameras are equipped with high-resolution cameras, long flexible cables, and bright LED lighting, making them ideal for HVAC duct inspections. Their rugged construction ensures durability in tough environments, and the easy-to-use interface makes them a favorite among HVAC professionals. Teslong’s cameras also offer features like image and video capture, which can be helpful for documentation or follow-up inspections.

Using an Inspection Camera for HVAC System Maintenance

An air duct camera is a valuable tool for regular HVAC system maintenance. It can help you check for debris buildup, detect early signs of wear, and assess the overall health of the duct system. Regular inspections with a camera can prevent major issues and ensure that your HVAC system operates efficiently for years to come.

Tips for Maintaining Your HVAC Inspection Camera

To ensure your duct inspection camera performs at its best, follow these maintenance tips:

• Clean the lens after each use to avoid smudges or debris.


• Inspect the cable for damage, and replace it if it becomes frayed or broken.


• Store the camera in a dry, safe place to avoid damage from moisture or physical impact.


Conclusion

An inspection camera for HVAC ducts is an indispensable tool for professionals looking to streamline their inspections and improve the efficiency of HVAC systems. With its ability to provide clear, real-time footage of ductwork, an air duct camera can help diagnose issues such as leaks, debris buildup, and mold growth. Teslong’s high-quality inspection cameras are perfect for HVAC duct inspections, offering durability, ease of use, and excellent visual clarity. Regular inspections using a duct inspection camera can lead to better system performance, lower energy costs, and healthier indoor air quality.
