An articulating borescope is the right tool when you must inspect a hidden surface that a straight-ahead camera cannot frame from the available access point. Its steerable tip can help you look around a lip, toward an offset feature, or back toward the entry path without opening the assembly first. The useful result is not simply footage. It is a clear, documented view that helps you decide what to inspect, test, or disassemble next.
This guide is for maintenance technicians, mechanics, and facility teams who need to assess accessible internal surfaces in machinery, equipment housings, ducts, or engines. It explains where tip articulation adds value, how to choose a configuration, and where a camera's evidence stops.
What an Articulating Borescope Does Differently

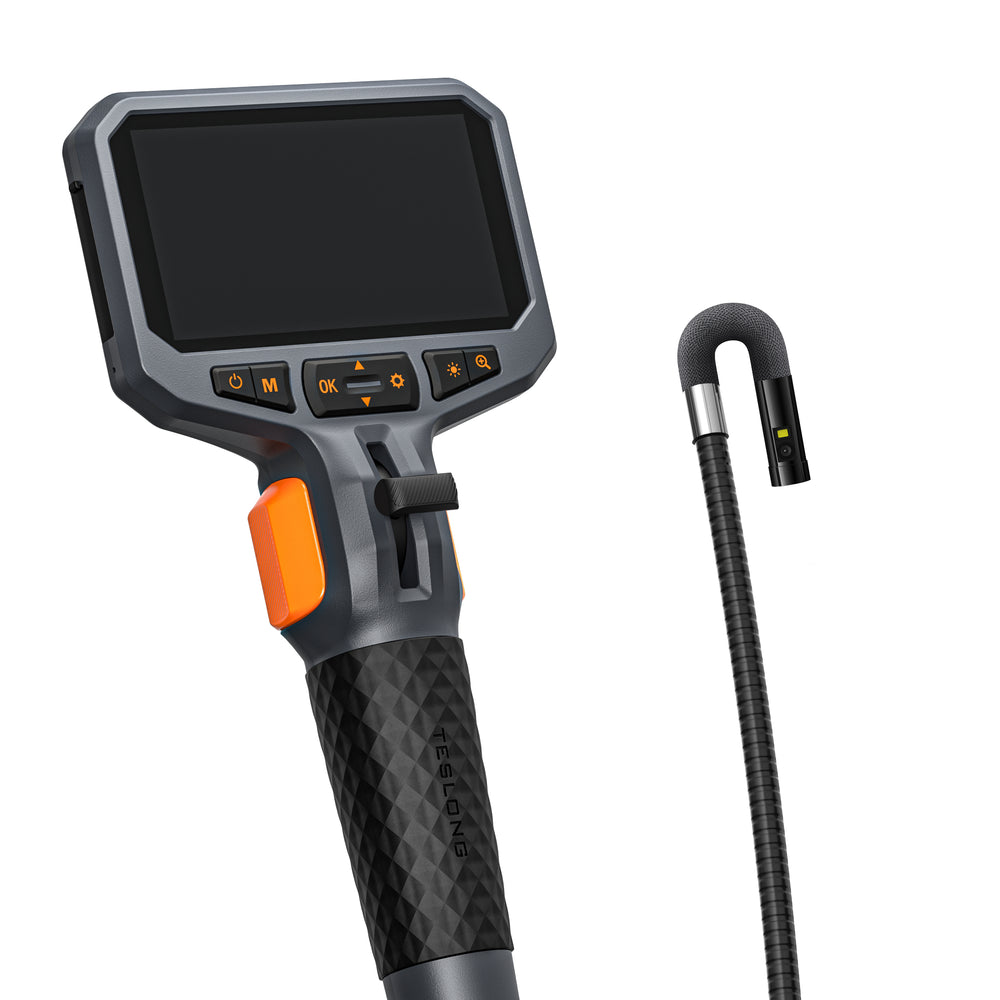

An articulating borescope combines a camera probe, illumination, live display, and a controlled tip. After the probe reaches an open cavity, the operator uses a wheel, lever, or joystick to redirect the camera. This changes the lens angle without relying only on twisting the whole cable.
That distinction matters when the feature of interest is not directly in front of the entry point. A straight-view camera can confirm a visible surface. A steerable tip can help bring an offset weld, valve edge, baffle, cavity wall, or internal fastener into view, provided the route has enough open space for the tip to move.
Articulation does not make a camera suitable for every route. It cannot pass a solid blockage, overcome a probe that is too large for the opening, or produce a useful image when the lens is outside its focus range. Treat it as a positioning tool, then confirm that probe diameter, length, lighting, and lens direction fit the same inspection.
When a Steerable Tip Is Worth Using
Use an articulating borescope when steering changes whether you can frame the target, not just when a product specification lists more movement. It is most useful for three common situations.
The Target Sits Beyond a Lip or an Offset

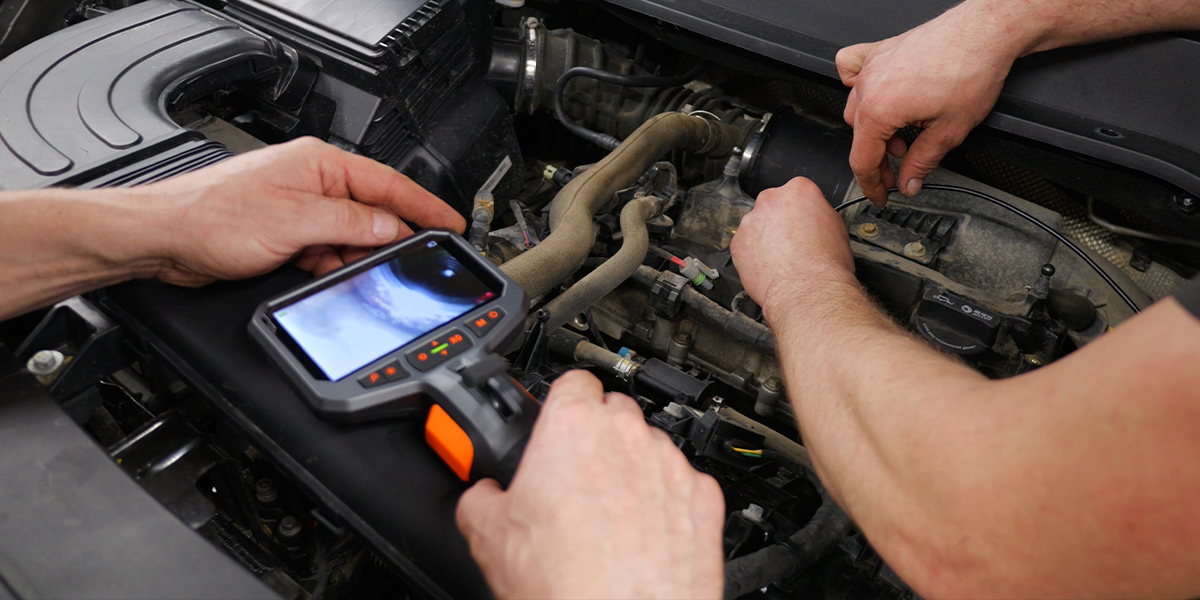

Machine housings, combustion chambers, and service ports often give the probe a direct path into the space but not a direct line of sight to the feature. A controlled bend can redirect the lens toward a wall, a valve area, or the underside of an internal feature. Move in small increments and pause after each adjustment so the image settles before you record it.
The Probe Cannot Be Rotated Freely
With a two-way camera, rotating the cable can sometimes change the plane of the bend. That is practical only when the cable is not trapped by a tight route or already under twist. If the probe must remain in a fixed orientation, four-way steering can provide the side-to-side correction needed to center an offset target.
You Need Repeatable Evidence From One Access Point
An articulating tip can help you capture a wide orientation view, then hold on the same surface for a close view. Record short clips or stills with the asset, access point, and viewing direction identified. This makes a later comparison with a reference area or follow-up inspection more useful than an unlabeled continuous video.
Build an Inspection Plan Before Inserting the Probe
The best borescope work begins with a specific question. Define the component, access point, visual condition you need to check, and what a useful image would change in the next maintenance decision. Random movement through a cavity may produce video, but it rarely produces evidence that another technician can interpret.
Use this sequence for a controlled industrial inspection:
- Make the equipment safe. Isolate energy sources, allow hot components to cool when required, and follow the applicable site procedure before opening an access point.
- Map the route. Measure the tightest opening, note bends and sharp edges, and estimate the distance to the target. Do not select a probe from its overall length alone.
- Start with a forward orientation view. Establish where the camera is before steering the tip, then record a reference image if the task needs documentation.
- Adjust light and distance. A bright LED can create glare on wet or polished surfaces. Reduce light when available, change the angle, or pull back slightly to recover surface detail.
- Articulate only when there is clearance. Use small inputs, stop if resistance rises, and never force the tip around an obstruction.
- Label the finding and choose the next step. Compare it with a reference surface when possible, then decide whether the result supports monitoring, another diagnostic test, planned repair, or disassembly.
This workflow keeps the camera in its proper role. It can reveal a visible condition and support a more targeted decision. It does not measure hidden dimensions, certify a component, or establish the root cause of every visible mark.
Choose the Configuration From the Access Path
An inspection camera should fit the physical path first and the feature list second. Start with the narrowest point, the direction of the target, and the practical reach. The table below is a selection framework, not a substitute for the specifications of a selected model.
| Inspection Requirement | What to Prioritize | Why It Matters |
|---|---|---|
| Narrow service opening | Probe diameter with working clearance | A tip that cannot pass the tightest point cannot reach the target |
| Nearby, mostly straight route | Short, manageable cable and forward or two-way view | Less loose cable makes the tip easier to control and support |
| Offset surface or internal bend | Two-way or four-way articulation | Steering can place the lens where cable rotation cannot |
| Several faces from one entry point | Four-way steering or an appropriate multi-lens configuration | Each solves a different viewing problem, so confirm the path and desired angle |
| Damp, oily, or dusty probe route | The probe's stated ingress-protection rating and material limits | A protected probe does not mean the display and controls can be exposed to the same environment |
| Maintenance records or team review | Still-image and video capture, plus a usable display | Good documentation makes the visible evidence reviewable after the inspection |
Swipe to compare →
Probe diameter is an access decision, not a proxy for image quality. A smaller probe can fit a narrower route, while a larger configuration may be appropriate when clearance, cable support, and the required viewing system all fit the job. Likewise, a 1080p recording specification describes the saved video file. A usable inspection view also depends on focus distance, a clean lens window, lighting, and the ability to position the tip.
Interpret What the Camera Shows With Care
An articulating borescope can reveal deposits, corrosion, staining, loose debris, surface marks, or an apparent obstruction. Each is an observation, not a full diagnosis. The next step should account for the asset history, symptoms, other measurements, and a comparison with a known-good area where that is practical.
For example, a mark on a cylinder wall may warrant additional mechanical testing. A discolored area inside a housing may justify checking temperature history, fluid condition, or upstream contamination. A camera can help define the location and appearance of the concern, but it cannot establish depth, material condition below the surface, or the cause of a failure from one frame.
This boundary is especially important in regulated or safety-critical work. Follow the applicable maintenance manual, inspection procedure, and qualification requirements. A general visual inspection camera is not a replacement for certified inspection methods, calibrated measurement tools, or an approved aviation or NDT procedure.
Protect the Probe and the Equipment
Most damage happens when a probe is pushed where it cannot travel, bent sharply at the entry point, or stored while the tip is still deflected. Work slowly and treat changing resistance as a reason to stop, withdraw slightly, and reassess the path.
After the inspection, clean the probe according to the product instructions and the contaminant involved. Use a soft, non-abrasive material on the lens area. Return the articulating tip to its neutral position before storage, and coil the cable in broad loops rather than tight bends. Keep the display unit dry unless the model documentation specifically gives it its own protection rating.
Do not insert a camera into equipment with moving internal parts, energized conductors, unsafe pressure, or temperatures outside the product's stated operating limits. If the inspection requires removing guards, opening a pressurized system, or bypassing a safety procedure, stop and use the approved maintenance process.
Match the Camera to the Job, Then Confirm the View
For general equipment, HVAC, facility, and mechanical work, compare the current industrial endoscope range by access path, tip control, probe size, and documentation needs.
The right articulating borescope is the one that reaches the target safely, frames the relevant surface, and produces a stable view you can interpret in context. Plan the route first, steer only where the tip has clearance, and use what you see to make the next maintenance step more informed.
Articulating Borescope FAQs
Q1. Can an Articulating Borescope Look Around a Corner?
It can redirect the lens after the tip reaches a cavity with enough room to bend. It cannot force the probe through a blocked passage, an opening that is too small, or a turn tighter than the probe can safely follow.
Q2. Is 4-Way Articulation Always Better Than 2-Way?
No. Four-way control is useful when side-to-side steering changes your ability to frame an offset target. For a mostly straight route where you only need to look above or below the tip, two-way control may be sufficient and simpler to operate.
Q3. Can a Borescope Diagnose a Mechanical Problem by Itself?
No. It can document a visible condition, but it cannot confirm every cause, measure every defect, or replace the tests required by the equipment manufacturer or maintenance procedure.
Q4. Is the Whole Inspection Camera Waterproof?
Do not assume so. Check the rating for the exact probe and model. A probe rated IP67 is designed for the conditions covered by that rating, while the display unit and controls should stay dry unless their documentation says otherwise.
Q5. What Should I Record During an Inspection?
Save a wide orientation image and close views of the concern. Label the asset, access point, viewing direction, and relevant operating context so another technician can compare the evidence later.
