What’s the difference between Teslong “professional” endoscopes and “household” endoscopes?

Basically, professional models are a better choice for daily use in wet and dirty environments, whereas the household models work great in dry environments and tight spaces. Teslong’s professional models are ruggedly-built and sometimes include metal armoring to withstand drops and scrapes. Professional probes - the bendable wire part - connect to the monitors using waterproof, threaded aviation connectors. Also, the probes are tougher and coated with a slick waterproof material to keep it sealed to IP67 standards. Teslong’s household models capture the same high-quality video and images, they just aren't built to withstand the rigors of daily, professional use. One big difference is the camera probe interface - these monitors use a USB-C plug to connect to the camera probe instead of an aviation connector. These camera cables are still sealed to IP67 spec, but they feel more flexible and are thinner, which can actually be an advantage when accessing tight spaces.

What is an all-in-one endoscope or borescope?

An all-in-one endoscope or borescope is one that includes its own screen and does not require another device to function. All-in-one endoscope cameras also have their own rechargeable battery and a memory card to store photo and video content.

What is a USB endoscope or borescope?

A USB endoscope, or borescope, consists of a camera probe and USB cord. This type of device must be plugged into a smart phone, tablet, PC or Mac computer to work, it doesn’t have a battery or memory - photos and video would be stored on the device it is plugged into. USB devices are not usually compatible with iPhones or iPads because iOS devices do NOT have USB. If you have an iOS device look at a stand alone or WiFi compatible device.

What is a WiFi endoscope or borescope?

WiFi endoscopes and borescopes use a WiFi transmitter to send their signals to your smart device, where they are viewed and stored using an app. Endoscopes and borescopes with WiFi transmitters are compatible with iOS (Apple iPhone & iPad) devices. They will also work with Android devices and since they plug into the WiFi transmitter with a USB plug they are also compatible with Apple OSX and PC computers.

How do you use an endoscope with a screen?

An industrial endoscope with a screen is very easy to use. First, make sure the device is fully charged. Next, install the camera probe into the monitor - it will either thread onto the monitor or it will plug into the monitor. Press the power button for a few seconds and the screen will illuminate. Use the Mode (M) button to switch between photo, video and viewing modes. All you have to do now is insert the camera probe into something you are inspecting and record photos and video by pressing the camera button.

What is the difference between an endoscope and a borescope?

Generally, “endoscope” is a medical term for a surgical device, but we frequently call our products “industrial endoscopes” to avoid confusing them with medical endoscopes. Teslong does not make any medical-grade surgical products. “Borescopes” is a term that is basically interchangeable with “industrial endoscopes” however we refer to all of our firearm inspection cameras as “borescopes” and the rest of our inspection cameras as “industrial endoscopes.”

Who makes the best endoscopes?

Teslong has been making inspection cameras including industrial endoscopes for over ten years so we have used over a decade of customer feedback to improve our designs and pack the best features into our products. We make stand-alone, USB, and WiFI devices to be compatible with any work situation and also a broad range of camera probes to perform inspections in many different environments.

How much of a difference does the screen size make in a stand-alone inspection camera?

It’s important to note that although the screen sizes and resolutions are different on some of our endoscopes, they all record video at 720p resolution or higher. The resolutions you see on the screen can range from the smallest 854 x 480p resolution, 4.5-inch screen up to the 1280 x 720p resolution, 5-inch screen. Obviously, larger screens are going to give you a better view of what the probe sees so if you need an inspection camera to perform on-site inspections and solve problems right away then you’ll want the biggest screen. If you are more interested in the recorded video and photo content, then a smaller screen should work just fine.

Which monitors are compatible with which cables?

Teslong endoscopes and borescopes use two types of connectors: USB-C or our thread-on aviation connectors. Our popular household models, the MS450 and NTS500b monitors, both use the USB-C connectors and they have interchangeable camera probes. These monitors can also be used with the aviation screw-on connector probes with the purchase of an NTG100-Q2C adaptor from our accessory page. Teslong NTS500, NTS450, and NTS300 professional/industrial monitors use the thread-on aviation connectors.

How do you choose what length probe to buy?

Teslong camera probes are typically available in three different lengths - 1, 3, or 5 meters long (3.2, 9.8 or 16 feet). Deciding which length to buy depends on your application - essentially how deep inside of something you need to look? The 1m length is good for most nearby applications like inspecting a rifle barrel, looking in an engine block or a computer case. The medium-length, 3m, probe is great for looking down exhaust pipes, investigating plumbing clogs or seeing what's inside your wallboard. For anything longer than that, reach for the 5-meter probe - there isn’t a big disadvantage to having a longer cable except you need to roll it up to store and it’s a little bunkier than the shorter options. Most people and applications will be served fine by the medium-length, 3m-long camera probe.

What is the difference between dual-lens probes and single-lens probes with mirrors?

Telsong’s camera probes typically are available with either a single-lens design, plus a right-angle mirror, or they are available with a dual-lens design. The single-lens-with-mirror probes are less expensive, and they are better for looking sideways at surfaces up close. Most commonly, this benefits Teslong’s gun borescope customers. The single-lens-plus-mirror design can slip down a gun barrel and look sideways at the fluting of the barrel right next to the lens probe. If you use a dual-lens probe for this type of application the right-angle lens will actually be too close to the gun barrel surface and sharp focus will be impossible. This is why all of our gun borescopes use a single lens with a mirror instead of a dual lens. For most other applications, like looking down a spark plug hole into the combustion chamber of a car engine, the dual lens design typically works better and gives a wider field of view.

Did you know we are now making triple lens probes?

Our newest specialty camera probes are available with triple lenses - one forward and two on the side, oriented 180 degrees apart. The triple lens probes are ideal if you are inspecting in places where you need to look sideways, but might have difficulty turning the probe. For instance, if it has maneuvered through a hole or around some corners, it won’t be very easy to rotate - the extra side lens allows you to see more.

How do you switch between lenses on a dual, or triple, lens camera?

It is easy to switch between the lenses on Teslong multi-lens camera probes. The button is right above the USB plug or Thread-on plug where it connects to the monitor. Press that button to cycle through the different camera views on the lens probe.

What is the difference between auto-focus endoscope probes and fixed-focus probes?

Teslong’s fixed focus probes are ideal for tight-access applications because they are so small in diameter - down to 0.153-inch (3.9mm). Teslong’s auto-focus lenses are larger in diameter - ½-inch (12.5mm), but the larger size gives them the benefit of an auto-focus system similar to one found in your mobile phone device. Fixed-focus lenses are optimized for focusing on objects that are ½ to 2-inch away, whereas the auto-focus lenses can focus on anything from ½ inch to 100 feet or even more.

TD100関節式検査カメラと3.3フィートプローブ

iPhone & Android Compatibility That Can Look Around Corners

SKU WF200D7L5

Save 30%

¥6,000

¥6,000 - ¥6,000

¥6,000

¥4,200

¥4,200 - ¥4,200

¥4,200

• Easy To Use & Affordable Trigger Grip Inspection Camera!
• High Definition 1920x1080 Videos & Photos
• Compatible With All iOS & Android Mobile Devices
• 8 LED Ring Lights Illuminate the Darkest Areas
• 2000 mAh Rechargeable Battery - Up to 4 hours of Use

Lens: Single Lens
Single Lens Dual Lens

Camera Type： 0.28 in (7.0 mm)

0.28 in (7.0 mm)

Probe Length： 16 ft (5-meters)

16 ft (5-meters)

数量

• Free shipping on orders over $149
• 12-month warranty
• 30-day money-back guarantee return

【双方向-180°水平回転】TeslongTD100関節式ボアスコーププローブは、0°から360°まで連続的に関節運動できます。狭いスペースを検査するのに便利なツールです。ハンドルのギアで方向を調整できます。届きにくい場所を簡単に通過できる直径8.5mmのカメラを備えた3.3フィートのケーブル。注：防水ではありません！
【iPhone＆ANDROIDとの互換性】TD100検査カメラは、すべてのiOSおよびAndroidモバイルデバイスと互換性があります。使いやすく、APPをダウンロードしてスマートフォンに接続するだけで、鮮明なカラー画像が得られます。
【720Pハイビジョンビデオ】このボアスコープカメラは、1280x720pピクセルでライブビデオ（MP4）と写真（JPG）をキャプチャできます。ヒートシンクと温度制御により、内視鏡カメラが暖かくなりすぎるのを防ぎます。
【時間とお金の節約】8つのリングLEDライトは明るさを調整可能で、前向きのカメラに最も暗い検査領域の完璧なビューを提供します。機械検査、車やトラックの修理、配管の修理、電気設備、家のDIY、天井、壁のアップグレード、煙突の掃除、エアコンのメンテナンスなどに適しています。注：防水ではありません!!!
【2200mAh充電式電池】新しい内蔵リチウムイオン電池は、大容量で充電可能で、最大2時間の使用時間をサポートします。音声付きのJPEG画像とMPEG-4ビデオの記録をサポートします。

もっと似ているものを探す自動車内視鏡 Teslongですべてのニーズに対応して販売されています。

8個のLEDライト

8つのLEDライトは明るさを調整可能で、前向きのカメラに最も暗い検査領域の完璧なビューを提供します。

明瞭に表現する

双方向-180°水平回転

2200mAh充電式バッテリー

作業時間：最大3時間

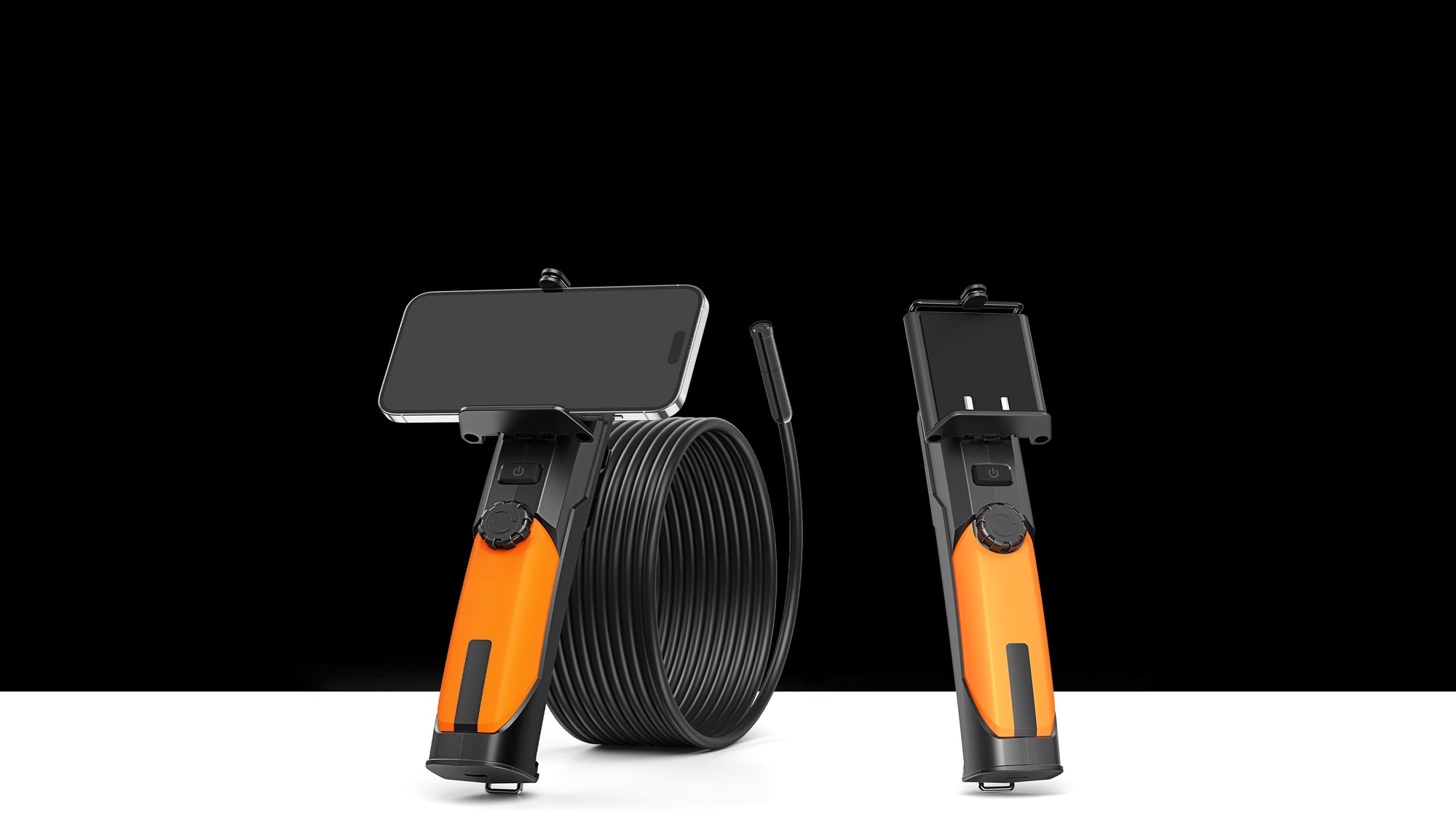

Teslong WF200 Inspection Camera - 7mm, Single Lens, 16-foot probe

Trigger Grip With Ergonomic Controls & WiFi Connection

The Modular 0.28-Inch Diameter Probe Is 16 Feet Long

SINGLE-LENS INSPECTION CAMERA

The flexible, single-lens, camera probe is 0.28 inches (7mm) in diameter and comes 16 feet (5m) long to reach the deepest areas. This camera probe features a metal cable housing with a durable rubber coating that holds its shape well for easy handling. The WF200 is also compatible with a range of other Teslong camera probes, so you can upgrade or replace probes in the future as your needs change. The lens includes adjustable LED ring lights to give the camera a perfect view of the darkest areas. This probe can inspect the combustion chambers of an engine by accessing through the spark plug hole, and is IP67 rated so it can investigate clogged drains, pool filters, or septic tanks without worrying about the camera shorting out.

WiFi CONNECTION WITH IPHONE & ANDROID

This inspection camera works over WiFi with an app on iPhones and Android mobile devices. Smart phones in a wide range of sizes are held in place by an adjustable mechanism. Photos and videos are saved to your phone without any wires or adapters.

2000 MAH RECHARGEABLE BATTERY

The NEW built-in lithium-ion battery is high-capacity and rechargeable, supporting up to 4 hours of run time.

0.28-inch diameter probe

• 2.0 megapixel HD sensor
• IP67 waterproof rating
• Flexible camera probe is easy to bend and control
• 6 LED lights

Household & DIY Inspection Camera Comparison

-
-	Shop Now	Shop Now	Shop Now	Shop Now	Shop Now
Model Number	NTS500B	MS450-NTC	TSMS450	TS43	WF200
Price	$159.99 USD	Starts at $89.99 USD	Starts at $119.99 USD	Starts at $79.99 USD	Starts at $38.99 USD
Use	Home / DIY	Home / DIY	Home / DIY	Home / DIY	Home / DIY
Type	Tablet	Tablet	Telescopic w/Tablet	Tablet	Trigger Grip
Screen Size	5-inch	4.5-inch	4.5-inch	4.3-inch	N/A
Screen Resolution	854x480 px	854x480 px	854x480 px	480x272 px	N/A
Screen Panel Type	IPS	IPS	IPS	IPS	N/A
Tempered Glass on Screen	✓	✓	✓	X	N/A
Interchangeable Camera	✓	✓	✓	X	✓
Probe Type	Bendable metal with USB-C connector	Bendable metal with USB-C Connector	Bendable metal with USB-C Connector	Not Removeable Bendable	Reinforced metal with thread-on connector
IP Rating	IP45 monitor, IP67 probe	IP45 monitor, IP67 probe	IP45 monitor, IP67 probe	IP45 monitor, IP67 probe	Camera probe only IP67
Image Capturing Resolution	1920x1080 (JPG)	1920x1080 (JPG)	1920x1080 (JPG)	1920x1080 (JPG)	1920x1080 (JPG)
Video Recording Resolution	1280x720 (AVI)	1280x720 (AVI)	1280x720 (AVI)	1280x720 (AVI)	1920x1080 (AVI)
Memory Card	32GB microSD Card (Installed)	32GB microSD Card (Installed)	32GB microSD Card (Installed)	32GB microSD Card (Installed)	None
Built-in Battery	3500mAh lithium-ion battery	2500mAh lithium-ion battery	2500mAh lithium-ion battery	2000mAh lithium-ion battery	2000mAh lithium-ion battery
Battery Working Hours	5 hours	4 hours	4 hours	3 hours	4 hours
Flash Light	✓	X	X	X	✓
Microphone & Speaker	✓	✓	✓	✓	X
Wi-Fi	X	X	X	X	✓
Split-Screen View	X	X	X	X	✓ (dual lens)

Camera Probe Comparison - Professional

Model Number	CAM3901/03	CAM5501/03	CAM7601/03/05	CAM12501/03	CAM55D01/03	CAM80D01/03/05	CAM79T01/03/05	CAMD8RL1/L3/L5
Price	$89.99 USD	$69.99 USD	$59.99 USD	$119.99 USD	$119.99 USD	$89.99 USD	$69.99	/
Use	Professional	Professional	Professional	Professional	Professional	Professional	Professional	Professional
How Many Lenses	1	1	1	1	2	2	3	2
Probe Diameter	0.15-inch (3.9mm)	0.21-inch (5.5mm)	0.29-inch (7.6mm)	0.49-inch (12.5mm)	0.21-inch (5.5mm)	0.31-inch (8mm)	0.31-inch (7.9mm)	0.31-inch (9.5mm)
Probe Lengths	3.2 ft (1m) 9.8 ft (3m)	3.2 ft (1m) 9.8 ft (3m)	3.2 ft (1m) 9.8 ft (3m) 16 ft (5m)	3.2 ft (1m) 9.8 ft (3m)	3.2 ft (1m) 9.8 ft (3m)	3.2 ft (1m) 9.8 ft (3m) 16 ft (5m)	16 ft (5m)	3.2 ft (1m) 9.8 ft (3m) 16 ft (5m)
Auto or Fixed Focus?	Fixed	Fixed	Fixed	Auto Focus	Fixed	Fixed	Fixed	Fixed
Camera Resolution	1280x720 px	1280x720 px	1280x720 px	1280x720 px on Monitor 1920x1080 px and 2592x1944 px only available when connect to PC or Mac, an adapter cable is required	1280x720 px	1280x720 px	1280x720 px	1280x720 px
Main Lens Focal Distance	1.18-3.9 inches (3-10cm)	1.18-3.9 inches (3-10cm)	1.18-3.9 inches (3-10cm)	1.18-inch to infinity (3cm-infinity)	1.18-2.36 inches (3-6cm)	1.18-3.9 inches (3-10cm)	1.2-4.0 inches (3-10cm)	1.18-3.15 inches (3-8cm)
View Angle	70º	70º	70º	70º	70º	70º	70º	70º
Side Lens Resolution	X	X	X	X	1280x720 px	1280x720 px	1280x720 px	1280x720 px
Side Lens Focal Distance	X	X	X	X	2cm	0.78-1.96 inches (2-5cm)	Lens B: 0.78-2.36 inches (2-6cm) Lens C: 0.39-0.98 inches (1-2.5cm)	0.78-1.96 inches (2-5cm)
Side Lens View Angle	X	X	X	X	70º	70º	70º	70º
Special Features	NA	NA	NA	NA	NA	NA	NA	Rotating Side Lens
Connector Type	Thread-on	Thread-on	Thread-on	Thread-on	Thread-on	Thread-on	Thread-on	Thread-on
Material of the Probe	Reinforced, Bendable Metal	Reinforced, Bendable Metal	Reinforced, Bendable Metal	Reinforced, Bendable Metal	Reinforced, Bendable Metal	Reinforced, Bendable Metal	Reinforced, Bendable Metal	Reinforced, Bendable Metal
