MicroSD Card (TF Card) for Firmware Update for NTS300, NTS500

SKU NTS300TF4015
Sold out
Original price ¥0 - Original price ¥0
Original price
¥0
¥0 - ¥0
Current price ¥0
Firmware Version: 4015 for NTS300

Monitor Firmware Update Available
**free of charge**

This firmware update is necessary in order for the monitor to be compatible with the rotating probe.

WHICH MONITOR DO YOU OWN?
NTS300, NTS500 - Update Available
NTS430, NTS600, NTS700 - Update Not Needed

Firmware Update Instructions

Updating your NTS300 or NTS500 monitor is free of charge, but requires a few extra steps.
Watch the video in the window above or read the following steps to update your monitor's firmware.

Identifying your monitor's Firmware

Identiying_Monitor_Img

1. First, you need to identify your monitor's firmware. Turn your monitor on and press the Settings button twice. Use the down button to scroll to “Version” and select it by pressing OK.

Identifying_Monitor

2. You will find the firmware version in the lower right corner of the next page. It is usually a long combination of numbers and letters that should look like this: LX2-40145-B1102-V003

Pay attention to the second set of numbers (in bold above). If you have the following firmware versions, then your monitor is eligible for an update:

NTS300: 4015, 4040, 4042, A063006

NTS500: 4040, 40118, 40145

Purchase

When you select your rotating probe, choose the monitor model you own followed by the firmware version it has. These probes are available in three sizes - 3.2 ft (1m), 9.8 ft (3m), and 16.4 ft (5m) - select which size you want and go to your shopping cart to complete the purchase.

NOTE: This camera does NOT support accessories like a hook, magnet, or mirror.

ROTATING DUAL-LENS ENDOSCOPE CAMERA

CAMERA PROBE ONLY: This camera probe must be used with one of the following monitors: NTS300*, NTS430, NTS500*, NTS600, or NTS700. (*NTS300 & NTS500 may require firmware update.)

THREE LENGTHS: This camera probe is available in three sizes - 3.2 ft (1-meter), 9.8 ft (3-meters), and 16.4 ft (5-meters).

DUAL LENSES: This probe is a dual-lens camera probe with a motorized 360° rotating feature. The probe is 0.37 inches (9.5 mm) in diameter and features a flexible metal cable housing with durable rubber coating that holds its shape well. This is a GREAT tool for auto maintenance, home inspection, electrical installs, HVAC fixes, and household DIY.

This is to purchase the camera probe ONLY. To use this probe it must be paired with a compatible monitor, as mentioned above.

If you would like to purchase a kit, click on the following links: 
NTS300 Rotating KitNTS500 Rotating Kit

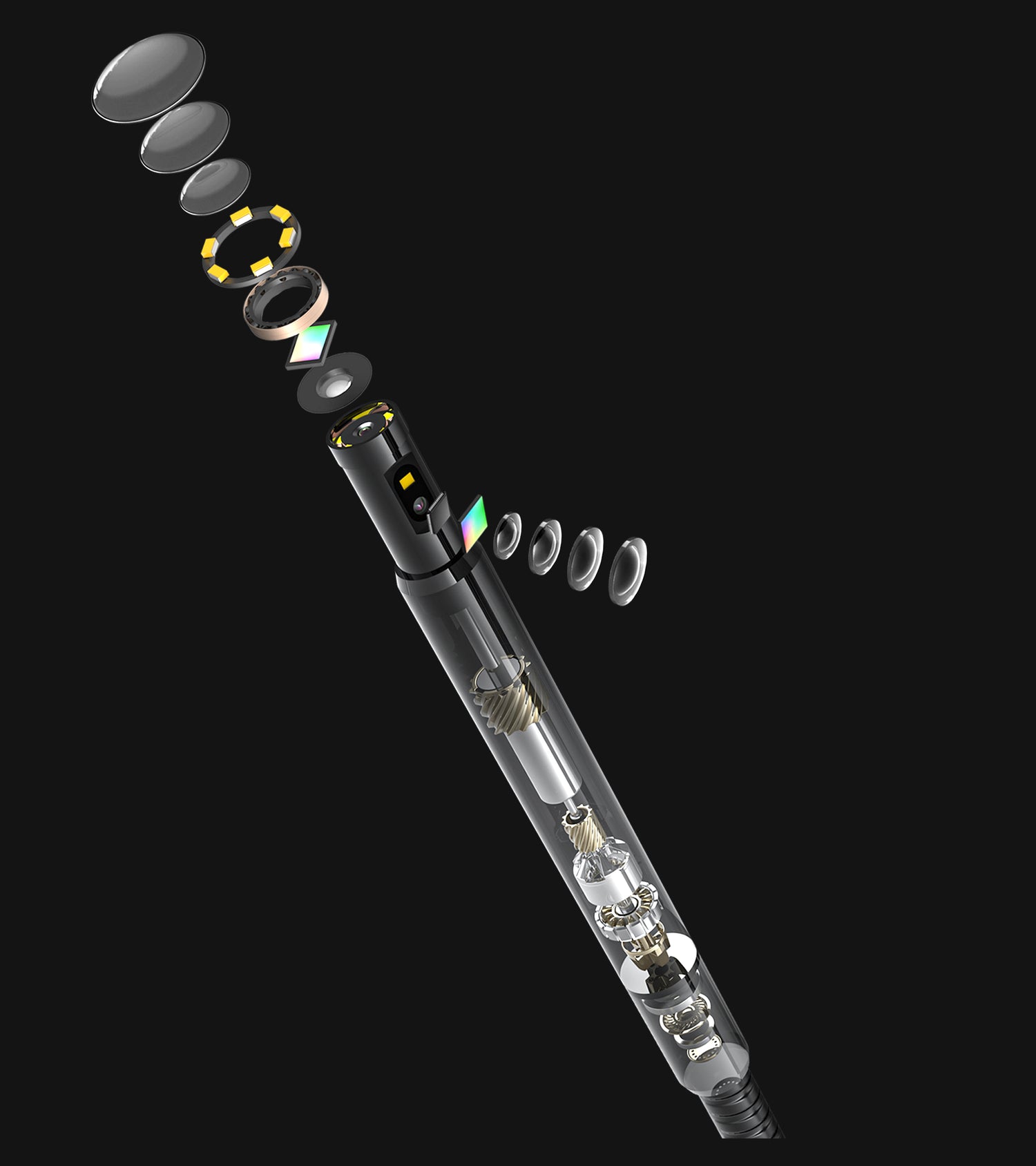

ROTATING DUAL LENS

ROTATING DUAL LENS

The straight-viewing and side-viewing camera rotate with a press of a button! There are two control buttons on the base of the probe. Pressing one button rotates the side-lens clockwise, while the other button rotates it counter-clockwise. Switching between the cameras is also easy to do with the press of a button, plus you get our new split-screen viewing mode. Split-screen mode enables you to see the views from the forward cam and the sideways cam at the same time.

It's easy to get disoriented when you are performing an inspection. The probe cable twists and turns and then all of a sudden the camera view is upside down. This probe solves that problem. Just press the rotation button and make your view upright again!

DEPTH OF FIELD

Straight-viewing Camera
• 1.0 megapixel HD
• 1.18 to 3.15 inch focus
• 6 LED lights

Side-viewing Camera
• 1.0 megapixel HD
• 0.79 to 1.97 inch focus
• 1 LED light

LED RING LIGHTS

Six LED lights are adjustable for brightness and give the straight-viewing camera a perfect view of the darkest inspection areas. The side-viewing camera also has its own LED lights.

IP67 WATERPROOF

The camera probe uses an aerospace connector that is water safe and IP67-rated to use in pools, plumbing, and rain. Use it in water up to 1 meter (3.2 ft) deep.

Flexible Probe

With a flexible and sturdy design, the camera cable can easily bend and maintain its shape, allowing you to easily access hard-to-reach areas.
