Articulating Borescopes

An articulating borescope is an inspection device with a steerable and pivoting camera. The tip of the probe has a camera and points in any direction you need to inspect in tight spaces. Articulating means to be connected by joints or hinges. A borescope is an instrument used to inspect inside small spaces. usually with a camera probe. Combine the two, and you have a steerable camera probe ready to go into small spaces for easier diagnostics.

Articulating borescopes come in four different types depending on how many directions the probe tip can bend. The four types are a one-way, two-way, four-way, and a joystick. With the last, the joystick-style can be manual or electric. A light around the tip of the camera also helps with visibility to better see in tight spaces. Additionally, a long cord allows you to slide the camera into hard-to-reach areas with ease.

Also, an articulating borescope includes some type of screen to display what the camera sees. Some include a screen, while others use an eyepiece. Furthermore, some work with a smart device like a phone, tablet, or computer using either a USB cord or a wireless connection. Finally, one key element that makes the borescope articulate is a steering wheel or joystick that controls where the camera probe looks and how it bends.

Next, many borescopes are waterproof or water-resistant and have internal steel wires for wear resistance. The long thin tube makes it easy to wind the borescope into tight spaces. Finally, articulating borescopes have heat sinks and temperature controls to prevent the camera from overheating.

Most articulating borescopes are used for mechanical or pipe inspections. A variety of industries can use this type of scope, including aircraft, vehicle, HVAC, power generation and electricity, energy, gas, oil, maintenance, manufacturing, and mining. This useful tool can help with home DIY car and motorcycle repair as well.

Technicians in a variety of fields can benefit from using an articulating borescope. Anything mechanical, such as cars, boats, and airplanes, will have engines with small parts that are hard to access. These scopes improve safety by providing thorough and accurate inspections with minimal contact or reduced disassembly.

Yes, articulating borescopes can record video and photos. Many can capture live video and high-definition images for on-the-spot inspections. The options that connect to a smart device can capture videos and images and store them on your phone or tablet. Most offer a preview mode, playback mode, and a menu mode for easy application and help to store both.

Check the resolution of the camera before purchasing and make sure it offers the quality you want. Also, if you are performing live inspections make sure you get a borescope with a large enough screen to see everything well. If you want a larger screen, consider choosing one you can use connected to a smart tablet for a bigger view.

Make sure the camera stays protected when not in use to keep the camera in working order. Store it in a soft cloth in a storage container to prevent scratches. Always clean the scope after use.

Before you can use the borescope, you will need to charge the device or ensure it has the necessary batteries or wall plugs. After charging, keep the probe tube straight and extended for insertion into the inspection area. Before using, check the inspection probe for dust, scratches, defects, or damage to make sure you see the inspection area clearly.

Insert  the camera probe into the area of inspection, gently taking your time. Do not use force, and make sure the camera is on so you can see where you are going. Once you have reached the area you desire, you can now articulate or move the camera as needed. Some articulating borescopes allow you to lock the bending angle to make sure the camera stays in place. If so, remember to unlock the bending angle before removing the tubing and camera from its location.

To remove the borescope, pull slowly and gently without force. After use, make sure to wash the probe and cord to remove any dirt. Use a soft cloth on the camera to prevent scratching the lenses. While many articulating borescopes can handle some heat, avoid using it in high temperatures to ensure the longevity of the device. Store the borescope in a case in its natural, relaxed position in a cool, dry, and safe location.

Do not submerge a borescope unless it says it’s one hundred percent waterproof, as this can cause damage and may cause electrocution. Also, never insert the probe into a moving part or component. Always operate the borescope within the temperature range advised by the manufacturer.

Articulating borescopes provide visual access to small areas without the need to remove parts to gain access to hard-to-reach areas. As a result, the technology allows you to find issues faster and with less work.

Moreover, the articulating head camera gives you a broader range of vision so you can inspect a bigger area, even in tight spots. Not all applications will benefit from  a moving head, but the articulating feature usually isn’t a hindrance.

With the wide range of uses, an articulating borescope can provide a very thorough inspection without the costly disassembly. Furthermore, some areas are very tight even when pulled apart, making them difficult to see inside. Overall, the tool can reduce the cost of inspection and maintenance while improving how items work.

An endoscope is traditionally the medical term used to describe a tool for doctors to aid in surgery. Frequently though, the term endoscope is being interchanged with the term borescope. They both do the same things, but the ones used for medical purposes are built to much higher standards. Both endoscopes and borescopes are available with articulating heads–this allows them to see a larger area than with a static camera probe.

Both provide a long flexible cord that winds into tight spaces. Also, both provide a camera with light  so the operator can see in dark places and also take photos and video. Each can also work with a built-in screen or a smart device.

Teslong provides a variety of endoscopes, borescopes, otoscopes, and accessories to help solve problems, save time and also save money. We spent decades creating and developing innovative digital products to help people solve problems and make life easier and better. Our focus is on manufacturing and exporting high-quality scopes for both consumer and industrial uses with state-of-the-art technology for affordable prices.

Try one of our borescopes, and you will have thirty days to try and return. We stand by our products and will work with you to fix any problems. Furthermore, you can reach us online, by phone, or with live chat to get all the information and assistance you need. We ship worldwide and even offer rewards to help our customers enjoy their products and get the most use from their purchase.

Start with the articulation your work demands: 2-way handles simple bends, 4-way gives full steering for complex geometries, and a rotating lens covers side viewing without bending the probe. Then match the probe diameter to the smallest opening you inspect (6.5 mm fits tighter bores, 8.5 mm is tougher and more affordable), and pick screen size and cable length for your workspace. Professionals should also consider dual-lens models, which add a 90° side view for faster, more complete inspections.

A single-lens borescope has one forward-facing camera, which keeps the price low — ideal for general DIY checks. A dual-lens borescope adds a second side-facing camera, so you can switch between forward and 90° side views without withdrawing the probe. If you inspect cylinder walls, pipes, or cavities where a side view matters, a dual-lens model like the TD450s Dual Lens or F6 PRO saves significant time.

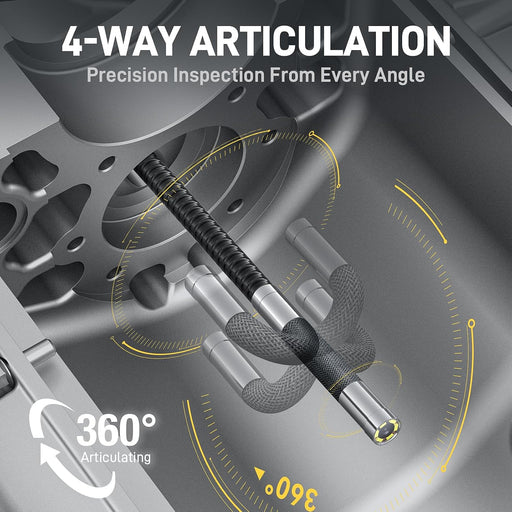

A 2-way articulating borescope bends up and down, which handles most pipe and cavity inspections at a lower cost — the TF500 is our professional 2-way option. A 4-way model like the F6 PRO also steers left and right, giving full control inside engine cylinders and complex mechanical assemblies. If you frequently work in tight, multi-directional spaces, 4-way articulation is worth the investment.

Match the probe diameter to the smallest opening you plan to inspect. A 6.5 mm probe (F6 PRO, TF500) fits tighter bores such as engine cylinders, and the 3.9 mm TF600 reaches even narrower openings, while an 8.5 mm probe (TD450s, TD500) is more durable, more affordable, and still fits most pipes, drains, and general inspection ports. Thinner probes generally cost more, so buy the diameter your actual work requires rather than the smallest available.

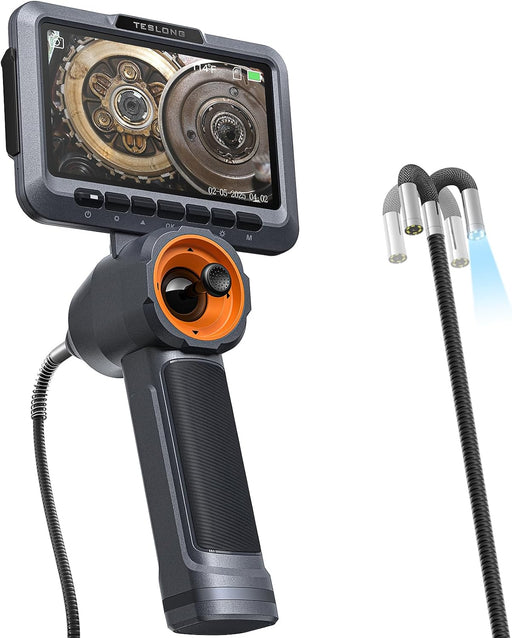

For professional automotive work, the F6 PRO 4-Way Dual Lens is the top choice — its 6.5 mm probe fits cylinder bores and the joystick gives precise multi-directional steering. The TD500 is a strong automotive and general-purpose option, while the articulating TD450s is the best budget pick for DIY mechanics. If you mainly inspect through spark plug holes, prioritize the 6.5 mm probe diameter.
