What is an articulating borescope?

An articulating borescope is an inspection device with a steerable and pivoting camera. The tip of the probe has a camera and points in any direction you need to inspect in tight spaces. Articulating means to be connected by joints or hinges. A borescope is an instrument used to inspect inside small spaces. usually with a camera probe. Combine the two, and you have a steerable camera probe ready to go into small spaces for easier diagnostics. Teslong’s household models capture the same high-quality video and images, they just aren't built to withstand the rigors of daily, professional use. One big difference is the camera probe interface - these monitors use a USB-C plug to connect to the camera probe instead of an aviation connector. These camera cables are still sealed to IP67 spec, but they feel more flexible and are thinner, which can actually be an advantage when accessing tight spaces.

What are articulating borescopes used for?

Most articulating borescopes are used for mechanical or pipe inspections. A variety of industries can use this type of scope, including aircraft, vehicle, HVAC, power generation and electricity, energy, gas, oil, maintenance, manufacturing, and mining. This useful tool can help with home, DIY, car, and motorcycle repair as well.

Can articulating borescopes take videos and photos?

Yes, articulating borescopes can record video and photos. Many can capture live video and high-definition images for on-the-spot inspections. The options that connect to a smart device can capture videos and images and store them on your phone or tablet. Most offer a preview mode, playback mode, and a menu mode for easy application and help to store both. Check the resolution of the camera before purchasing and make sure it offers the quality you want. Also, if you are performing live inspections make sure you get a borescope with a large enough screen to see everything well. If you want a larger screen, consider choosing one you can use connected to a smart tablet for a bigger view.

How do you use an articulating borescope?

Before you can use the borescope, you will need to charge the device or ensure it has the necessary batteries or wall plugs. After charging, keep the probe tube straight and extended for insertion into the inspection area. Before using, check the inspection probe for dust, scratches, defects, or damage to make sure you see the inspection area clearly. Insert the camera probe into the area of inspection, gently taking your time. Do not use force, and make sure the camera is on so you can see where you are going. Once you have reached the area you desire, you can now articulate or move the camera as needed. Some articulating borescopes allow you to lock the bending angle to make sure the camera stays in place. If so, remember to unlock the bending angle before removing the tubing and camera from its location. To remove the borescope, pull slowly and gently without force. After use, make sure to wash the probe and cord to remove any dirt. Use a soft cloth on the camera to prevent scratching the lenses. While many articulating borescopes can handle some heat, avoid using it in high temperatures to ensure the longevity of the device. Store the borescope in a case in its natural, relaxed position in a cool, dry, and safe location. Do not submerge a borescope unless it says it’s one hundred percent waterproof, as this can cause damage and may cause electrocution. Also, never insert the probe into a moving part or component. Always operate the borescope within the temperature range advised by the manufacturer.

Benefits of using an articulating borescope?

Articulating borescopes provide visual access to small areas without the need to remove parts to gain access to hard-to-reach areas. As a result, the technology allows you to find issues faster and with less work. Moreover, the articulating head camera gives you a broader range of vision so you can inspect a bigger area, even in tight spots. Not all applications will benefit from a moving head, but the articulating feature usually isn’t a hindrance. With the wide range of uses, an articulating borescope can provide a very thorough inspection without costly disassembly. Furthermore, some areas are very tight even when pulled apart, making them difficult to see inside. Overall, the tool can reduce the cost of inspection and maintenance while improving how items work.

Articulating borescopes vs. endoscopes - key differences?

An endoscope is traditionally the medical term used to describe a tool for doctors to aid in surgery. Frequently though, the term endoscope is being interchanged with the term borescope. They both do the same things, but the ones used for medical purposes are built to much higher standards. Both endoscopes and borescopes are available with articulating heads–this allows them to see a larger area than with a static camera probe. Both provide a long flexible cord that can wind into tight spaces. Also, both provide a camera with light so the operator can see in dark places and also take photos and video. Each can also work with a built-in screen or a smart device.

Why choose a Teslong articulating borescope?

Teslong provides a variety of endoscopes, borescopes, otoscopes, and accessories to help solve problems, save time and also save money. We spent decades creating and developing innovative digital products to help people solve problems and make life easier and better. Our focus is on manufacturing and exporting high-quality scopes for both consumer and industrial uses with state-of-the-art technology for affordable prices. Try one of our borescopes, and you will have thirty days to try and return. We stand by our products and will work with you to fix any problems. Furthermore, you can reach us online, by phone, or with live chat to get all the information and assistance you need. We ship worldwide and even offer rewards to help our customers enjoy their products and get the most use from their purchase.

TD450s Articulating 8.5mm Dual-Lens Inspection Camera

All-In-One Articulating Inspection Camera That Can Look Around Corners

SKU TD450SD85DL155

Sold out

¥23,600 - ¥23,600

¥23,600

¥23,600 - ¥23,600

¥23,600

• Two-Way 210° Articulation on a 5.08 ft Probe
• 8.5 mm Dual-Lens Camera Probe
• 1920x1080 Resolution Photos & 1280x720 Videos
• LED Ring Lights Illuminate the Darkest Areas
• 32GB Micro SD Card Included to Store Photos & Video

Lens available in:
Single Lens Dual Lens

0.33 in (8.5 mm) diameter

Quantity

• Free shipping on orders over $149
• 12-month warranty
• 30-day money-back guarantee

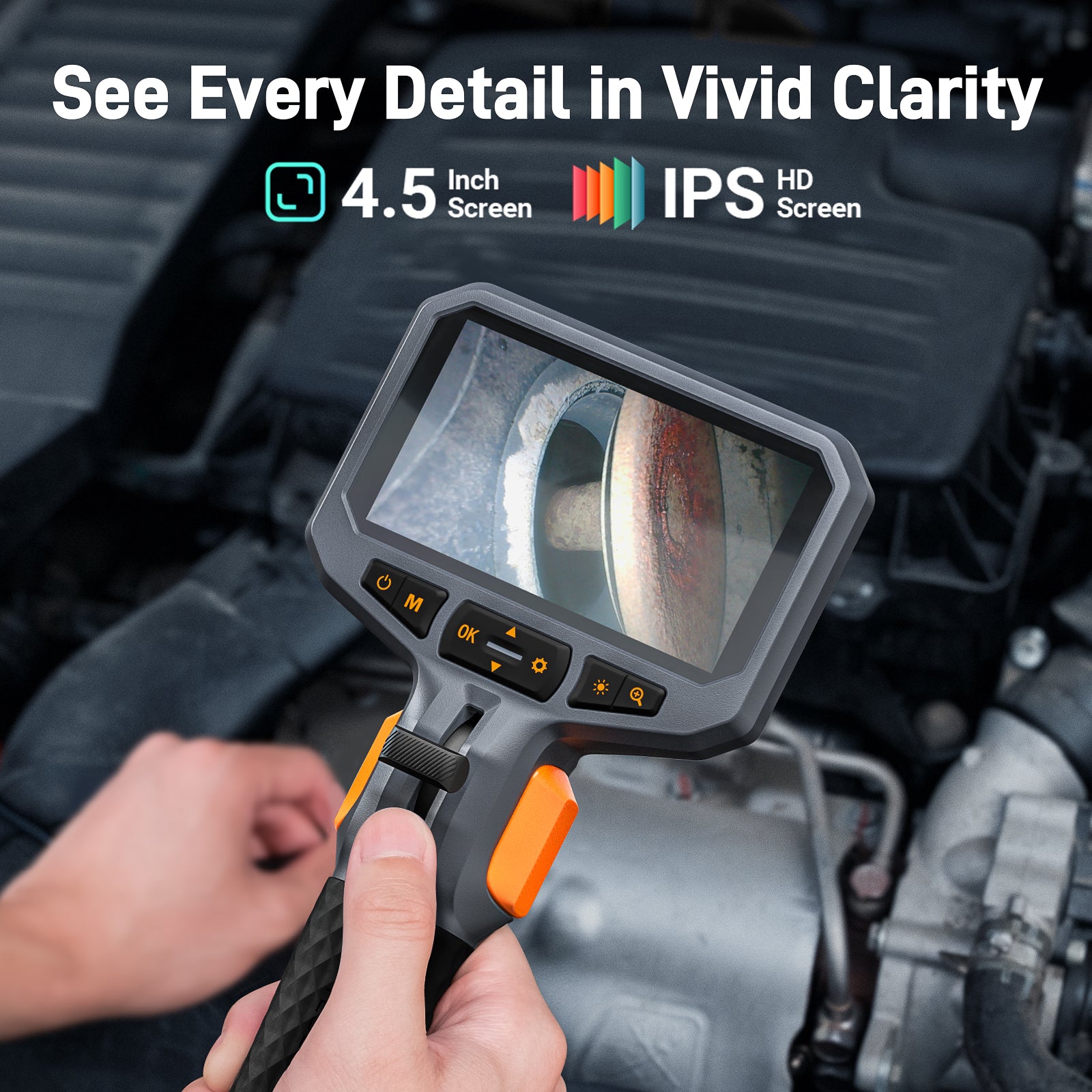

Two-way articulation with a 4.5-inch monitor

Articulating Dual-Lens Inspection Camera

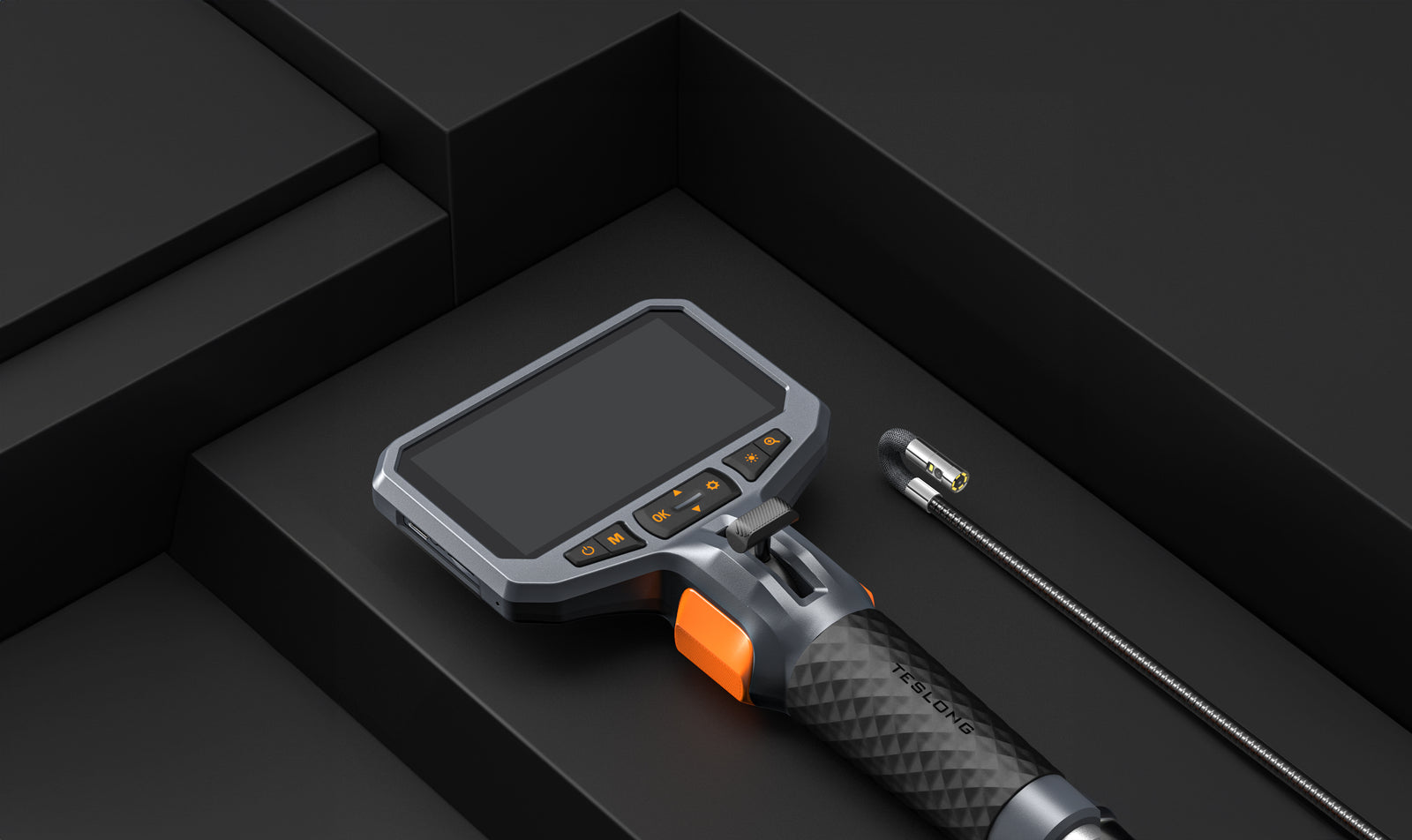

The TD450S Dual Lens is a portable, handheld, multi-function inspection camera. The camera probe includes two lenses, a forward viewing and side-viewing camera, that can be switched with the press of a button. The articulating probe is controlled by the lever on the handle, allowing it to look in different directions. The monitor can take pictures, record video and audio, a helpful feature to document and share your inspection. This is perfect for many applications, such as inspecting engine cylinders, airplane wings, wall boards, and brake systems.

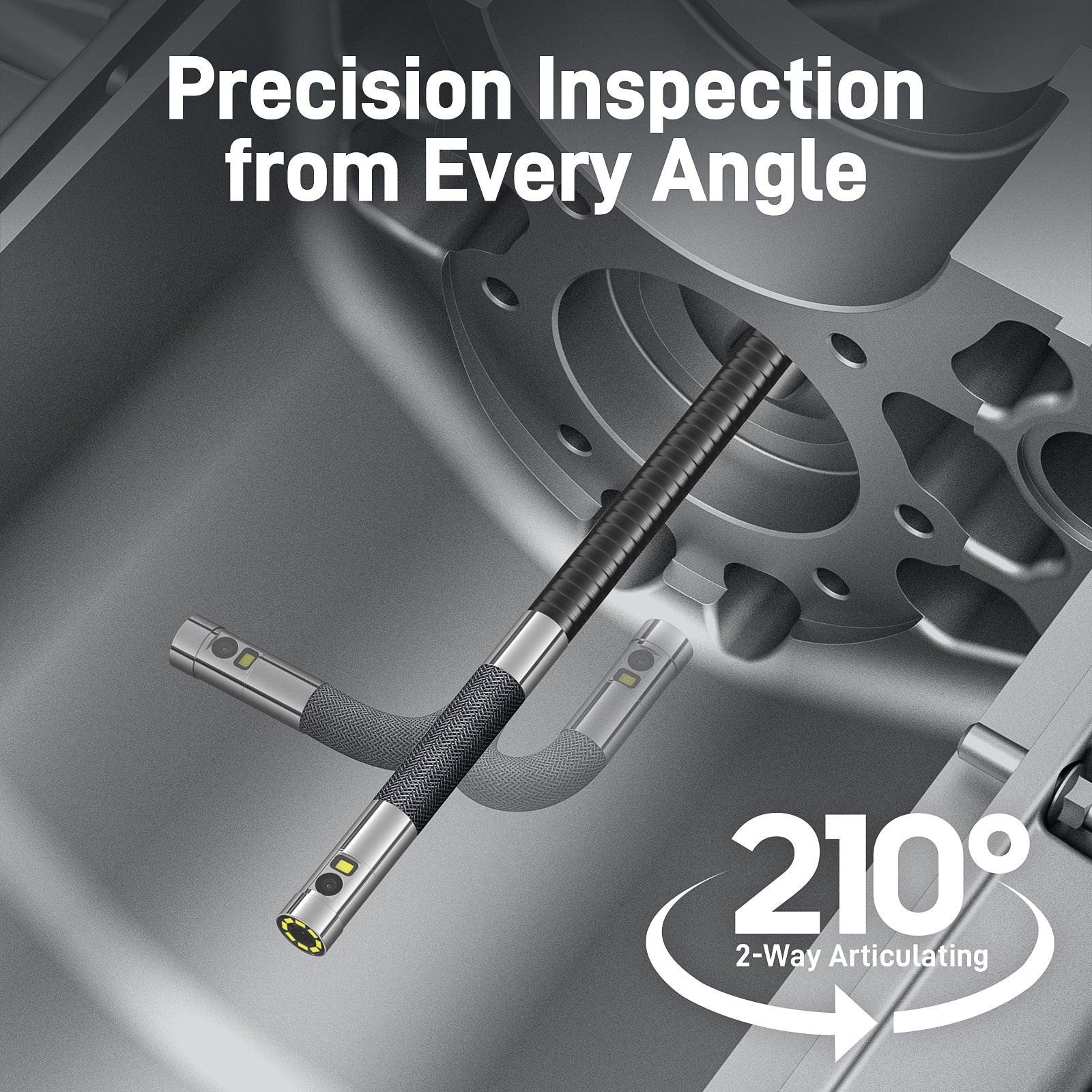

The 5-foot-long probe is bendable, but holds its shape which allows you to shape it before inserting it into a tight space. Once in position, use the articulation lever to articulate the tip through 210 degrees of movement.

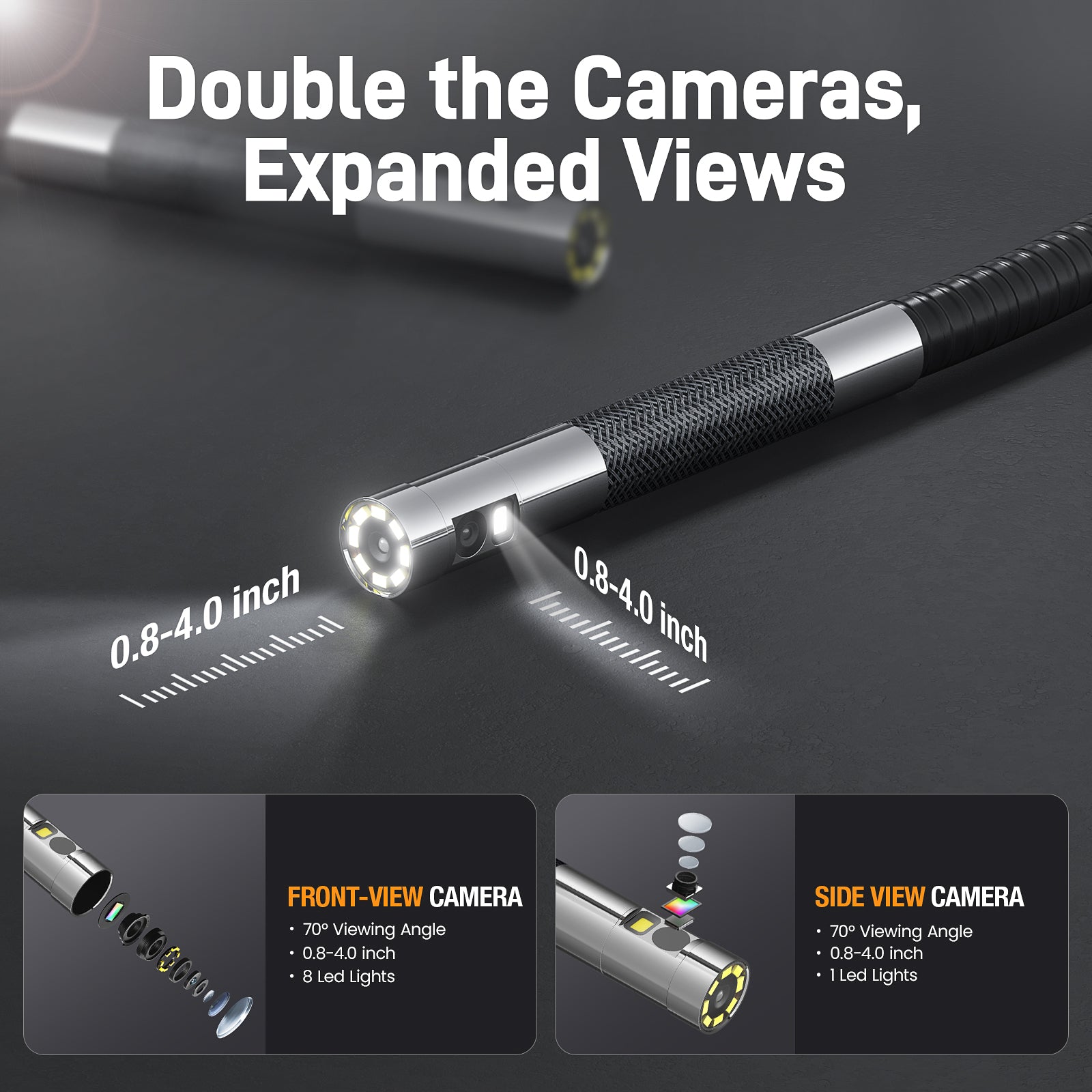

Look Forwards or sideways

This inspection camera's probe design includes dual lenses plus 210 degrees of articulation. See more of everything and maintain the best control, even in hard-to-reach places.

Capture Photos & Videos Or Switch Lenses

The multi-function capture button snaps photos or videos to document your inspection. Long press the capture button to switch between the camera lenses and switch from front view to side view!

INTELLIGENT HIGH-TEMPERATURE SAFETY

Using the camera and LED lights may result in the camera working above the ambient room temperature. When performing inspections in an environment such as a hot garage, take note of the device's temperature to avoid overheating. The TD450S activates its Auto Alarm & Shutdown feature when the probe temperature exceeds 158°F (70°C) to prevent any damage.

ARTICULATION LEVER

The TD450S articulation lever is an efficient and ergonomic means of steering the camera towards a subject in almost any hard-to-reach location.

Other Features
• Built-in microphone
• Built-in 32GB Memory Card

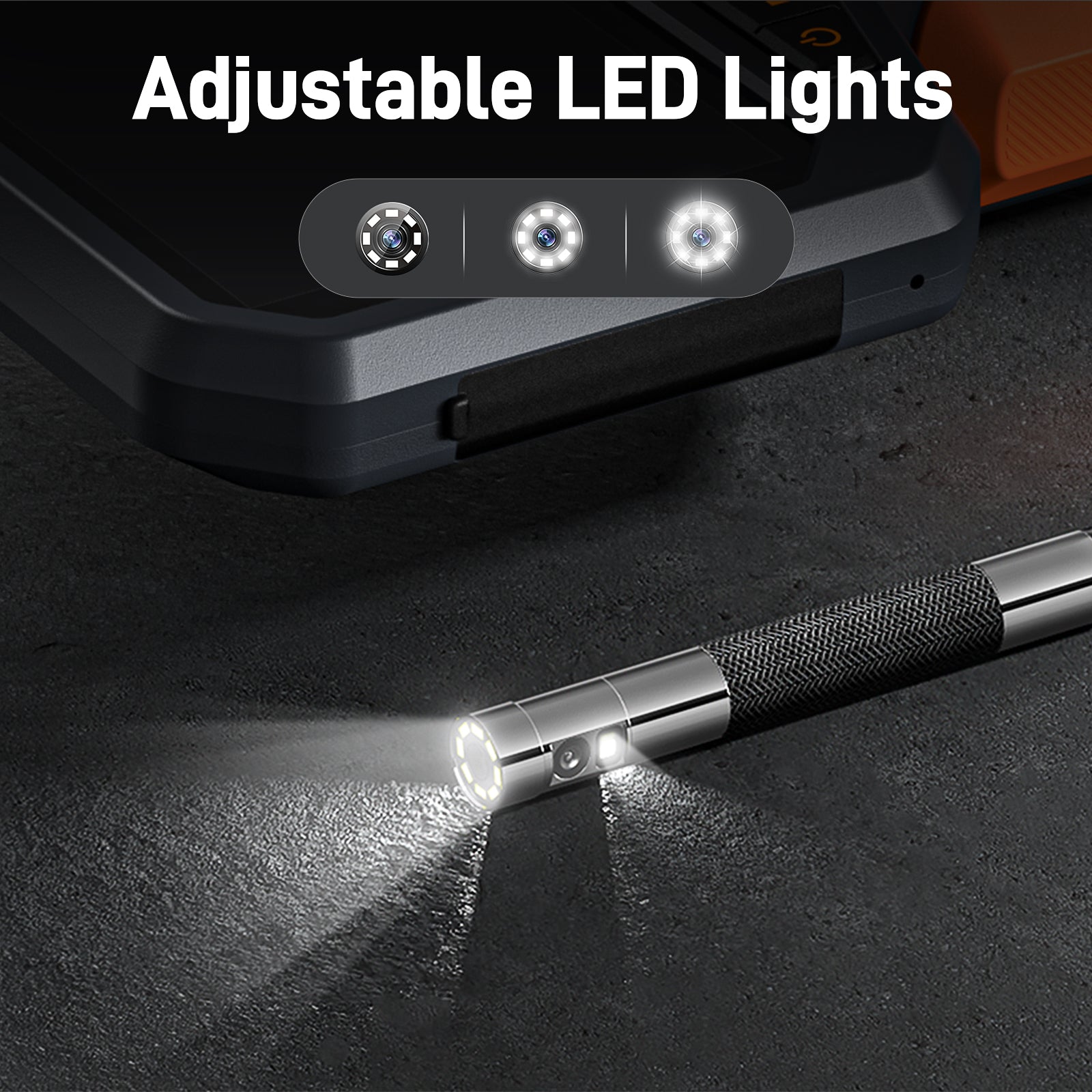

• 8 Bright LED lights and 1 side-viewing LED light
• IP67 waterproof rating
• 3000mAh Lithium Polymer Battery
• Up to 4 hours working time

Articulating Inspection Cam Comparison

-
-	Shop Now	Shop Now	Shop Now	Shop Now	Shop Now	Shop Now
Model Number	TD450s 8.5mm	TD450s Dual-Lens 8.5mm	TD500 3.9mm	TD500 6.5mm & 8.5mm	TD500 Dual-Lens 6.5mm	TD400 + NTS500
Price	$129.99 USD	$149.99 USD	Starts at $349.99 USD	Starts at $279.99 USD	Starts at $349.99 USD	Starts at $599.99 USD
Use	Home DIY	Home DIY	Professional	Professional	Professional	Professional
Type	2-Way Articulating	2-Way Articulating	2-Way Articulating	2-Way Articulating	2-Way Articulating	4-Way Articulating
Screen Size	4.5-inch	4.5-inch	5-inch	5-inch	5-inch	5-inch
Probe Diameter	8.5mm (0.33inch)	8.5mm (0.33inch)	3.9mm (0.15inch)	6.5mm (0.25inch), 8.5mm (0.33inch)	6.5mm (0.25inch)	6.5mm (0.25inch)
Screen Resolution	854x480 pixels px	854x480 pixels px	854x480 pixels px	854x480 pixels px	854x480 pixels px	1280x720 px
Screen Panel Type	IPS	IPS	IPS	IPS	IPS	IPS
Tempered Glass on Screen	✓	✓	✓	✓	✓	✓
Interchangeable Camera	X	X	X	X	X	✓
Probe Type	Bendable metal with articulating tip	Bendable metal with articulating tip	Bendable metal with articulating tip	Bendable metal with articulating tip	Bendable metal with articulating tip	Bendable metal with articulating tip
IP Rating	Camera probe only IP67	Camera probe only IP67	Camera probe only IP67	Camera probe only IP67	Camera probe only IP67	IP45 monitor, IP67 probe
Image Capturing Resolution	1920x1080 (JPG)	1920x1080 (JPG)	1280x720(3.9mm) (JPG)	1920x1080(6.5mm), 1280x720(8.5mm) (JPG)	1280x720 (JPG)	1920x1080 (JPG)
Video Recording Resolution	1280x720	1280x720	1280x720(3.9mm)	1920x1080(6.5mm), 1280x720(8.5mm)	1280x720	1280x720
Memory Card	32GB microSD Card (Installed)	32GB microSD Card (Installed)	32GB microSD Card (Installed)	32GB microSD Card (Installed)	32GB microSD Card (Installed)	32GB microSD Card (Installed)
Built-in Battery	3000mAh lithium-ion battery	3000mAh lithium-ion battery	3000mAh lithium-ion battery	3000mAh lithium-ion battery	3000mAh lithium-ion battery	3500mAh lithium-ion battery
Battery Working Hours	4 hours	4 hours	4 hours	4 hours	4 hours	4.5 hours
Flash Light	X	X	X	X	X	✓
Microphone & Speaker	✓	✓	✓	✓	✓	✓
Wi-Fi	X	X	✓	✓	✓	X
Split-Screen View	X	X	X	X	✓	X

Free Shipping

On All US Orders Over $149

12-Month Warranty

30-Day Money-Back Guarantee

2-Day Delivery

Order Now and Have It in 2 Days!

Chat With Us

24-Hour Chat Support
