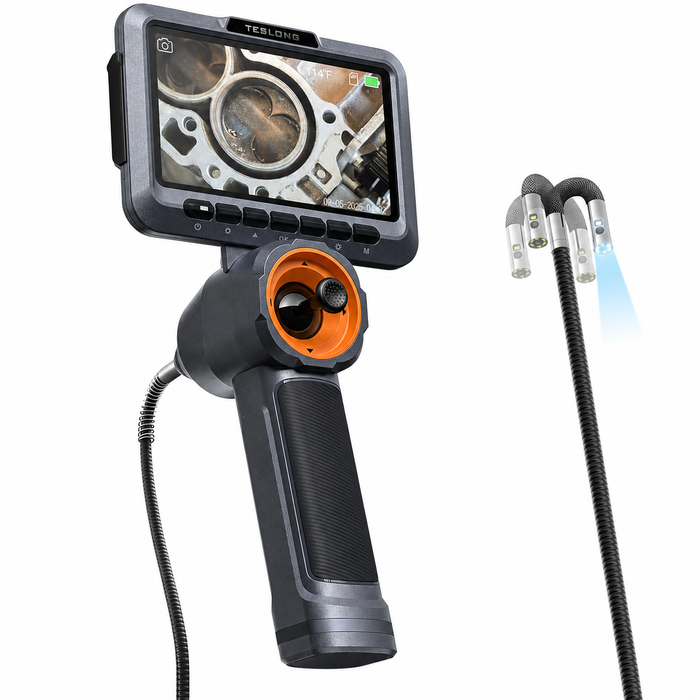

Teslong TF550 dual-lens four-way articulating borescope with 5-inch screen and 6.5 mm probe

TF550 Dual-Lens 4-Way Articulating Borescope with 5-Inch Screen

Name: TF550 Dual-Lens 4-Way Articulating Borescope with 5-Inch Screen
Brand: TESLONG
SKU: TF550D65DL1.55US
Price: 98800.0 JPY
Availability: OutOfStock
Rating: 4.5 (10 reviews)

SKU TF550D65DL1.55US

Inspect engines, machinery, pipes and other confined spaces with precise four-way joystick articulation and switchable front and side camera views. The TF550 combines a 6.5 mm IP67 probe, a 5-inch IPS display, 1080p recording and wireless image sharing for professional visual inspections.

Sold out

¥98,800 - ¥98,800

¥98,800

¥98,800 - ¥98,800

¥98,800

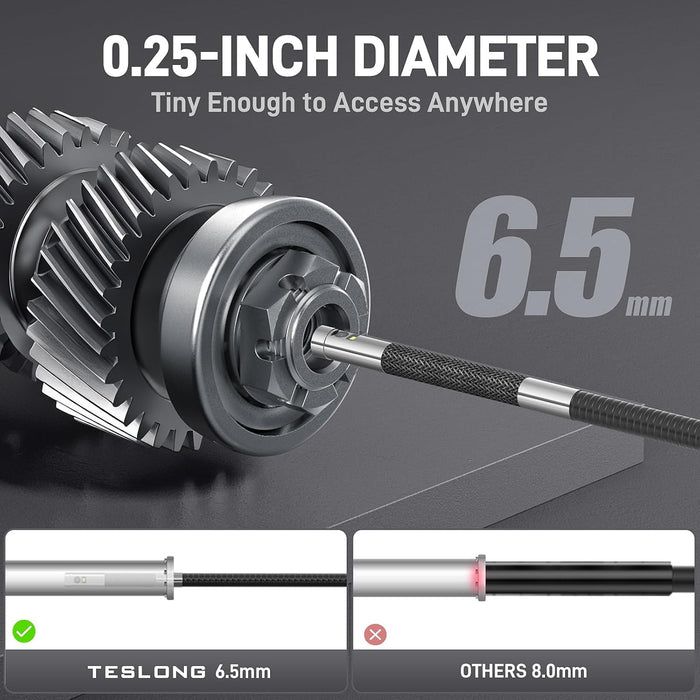

Probe Diameter: 0.25 in (6.5 mm)

0.25 in (6.5 mm)

Probe Length: 5 ft (1.5m)

5 ft (1.5m)

Quantity

• Free shipping on orders over $199
• 12-month warranty
• 30-day money-back guarantee

TF550 professional four-way articulating dual-lens borescope

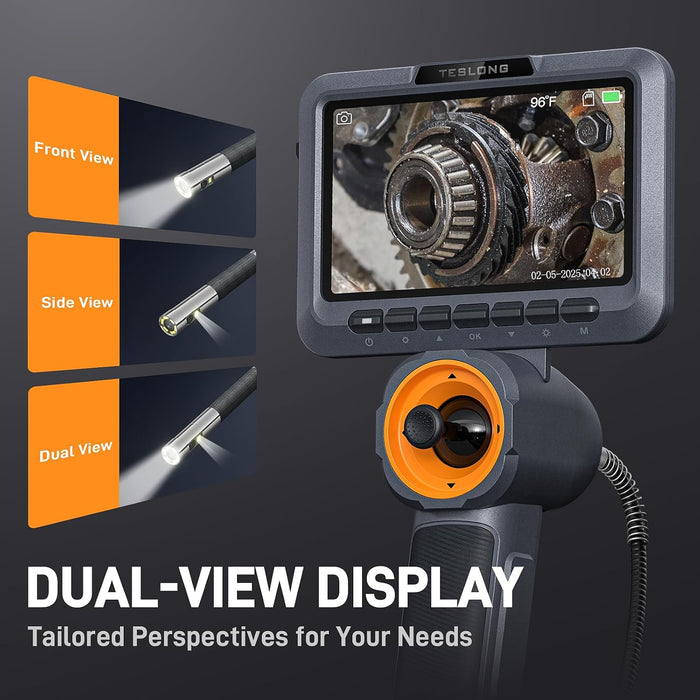

TF550 dual-lens articulating probe for multi-angle inspections

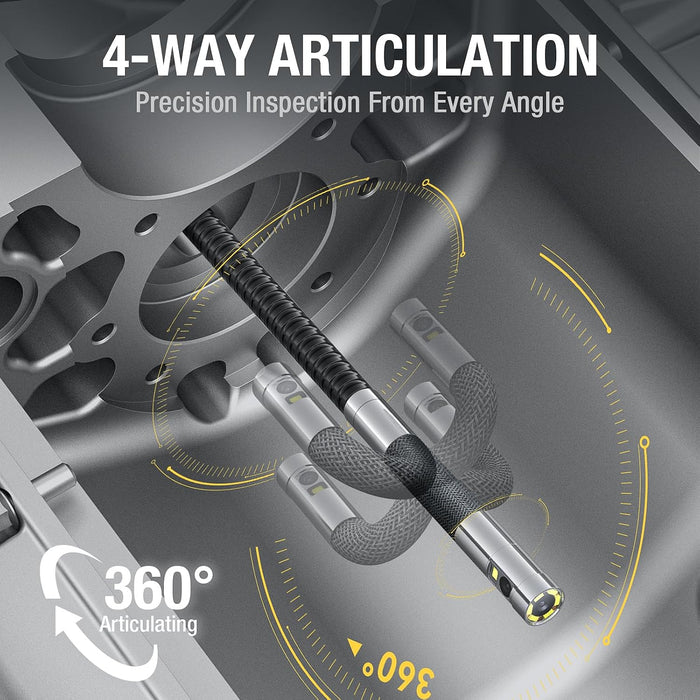

The four-way articulating probe and switchable front and side cameras help you inspect confined spaces from multiple angles, reducing unnecessary disassembly and improving inspection efficiency.

Ergonomic Design for One-Handed Inspection

TF550 directional joystick for precise probe control

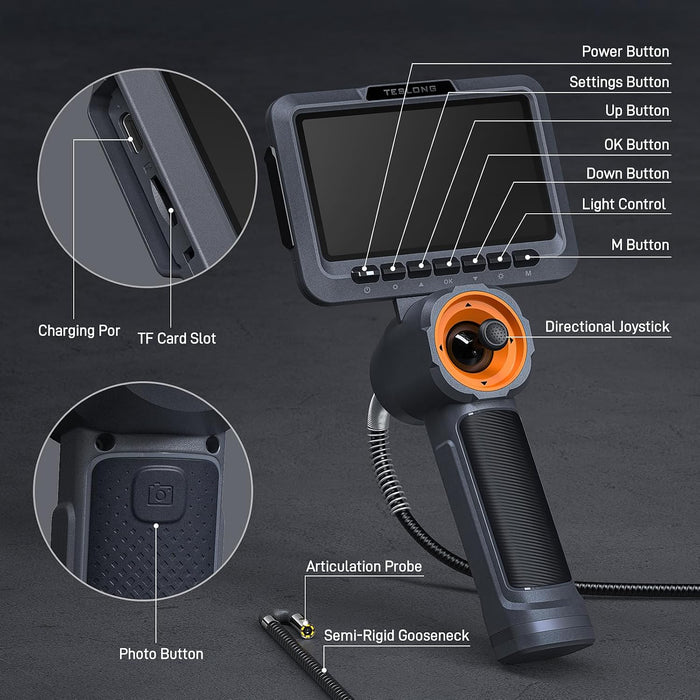

Joystick Design for Easy Control

Direct the probe precisely with the responsive joystick. Nearby controls provide quick access to LED brightness, image rotation and zoom.

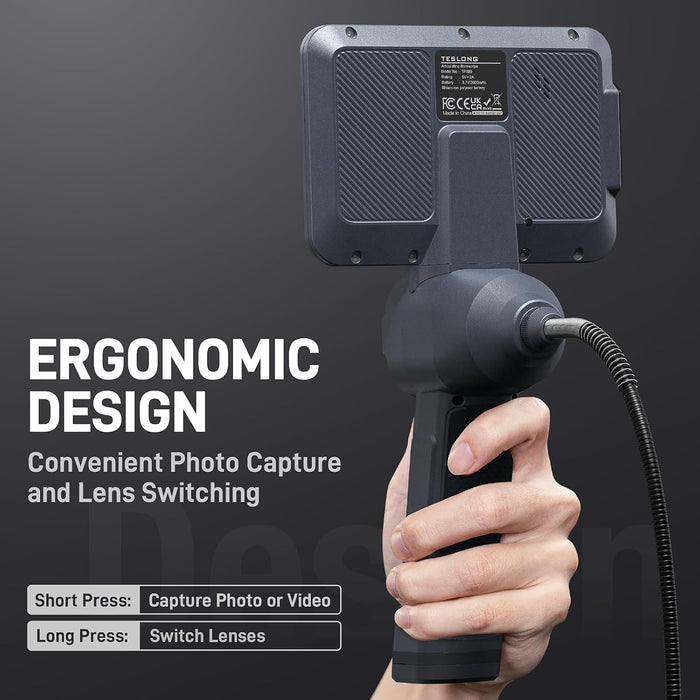

Rear Button for Easy Recording

Capture photos and videos or switch camera views with the rear control while maintaining a secure one-handed grip.

More Features

Wireless sharing of TF550 inspection images to a mobile device

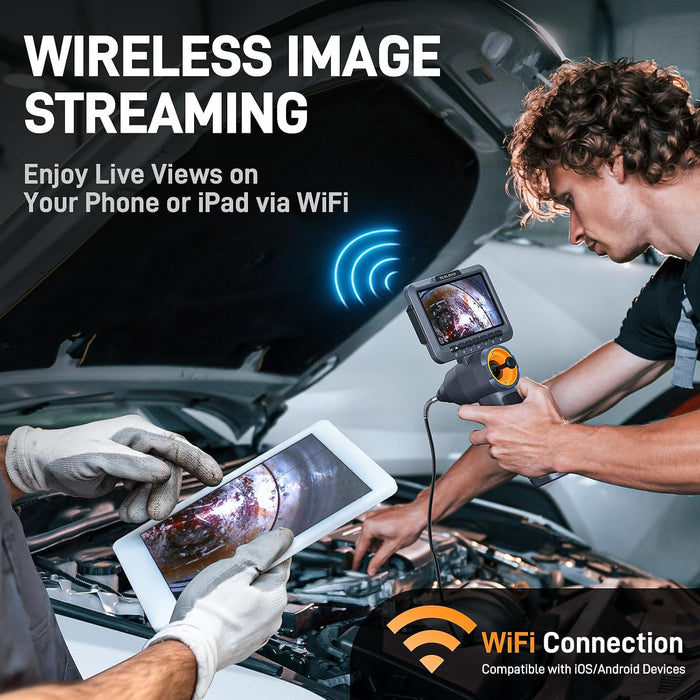

Stream Inspection Images

Share live inspection images with a phone or tablet using the built-in wireless connection.

TF550 five-foot flexible gooseneck inspection cable

5 ft Flexible Gooseneck Cable

Bend the semi-rigid cable and retain its shape while reaching difficult areas.

Temperature Monitoring

Alerts at 74°C, shuts down at 84°C and restarts after cooling below 60°C.

TF550 IP67 waterproof dual-lens inspection probe

IP67 Waterproof Probe

Use the probe in wet environments; the display is weather-resistant and not submersible.

3000mAh Rechargeable Battery

Supports up to four hours of continuous operation.

32GB Memory Card

Store photos and audio-video inspection records for review and documentation.

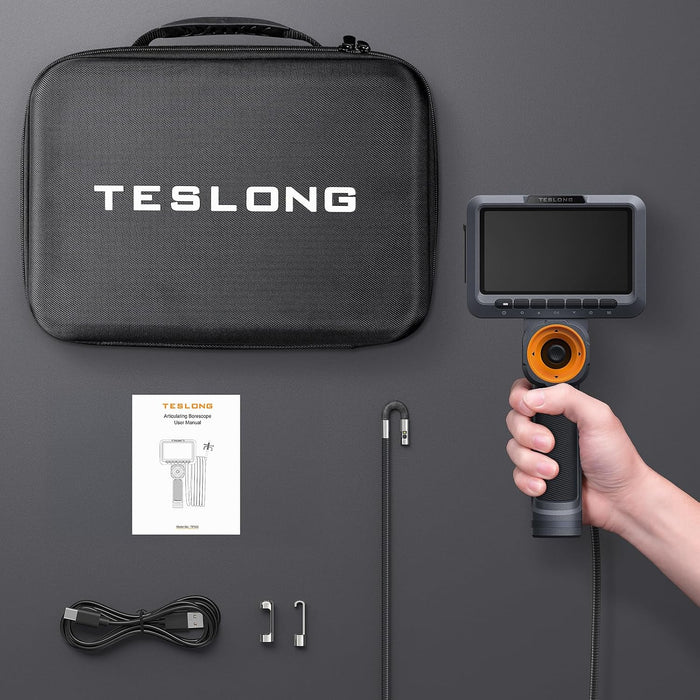

Protective Carrying Case

Keep the monitor, probe and accessories organized for transport.

Hook and Magnet Accessories

Retrieve small objects from confined spaces during inspections.

Technical Specifications

Probe	4-way articulating dual-lens probe	Maximum articulation	210°
Probe diameter	6.5 mm / 0.25 in	Probe length	1.5 m / 5 ft

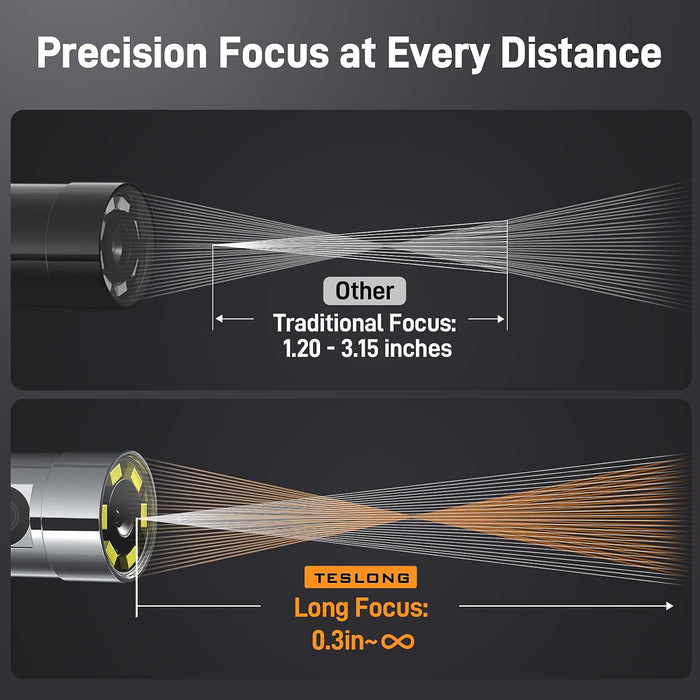

Camera	Dual 1.0 MP, 1/9 CMOS	Depth of field	1 cm–∞ / 0.3 in–∞
Field of view	90°	Illumination	6+1 LEDs, adjustable brightness
Screen	5-inch IPS LCD	Recording	1920 × 1080 photos and video
Battery	3000mAh rechargeable lithium battery	Probe temperature	0–45°C / 32–113°F

TF550 borescope applications for automotive machinery wall and pipe inspections
