A plumbing camera lets you see reachable internal surfaces before opening a fixture, wall, or pipe. Test the lens, image, lighting, recording, and cable first, then advance slowly while watching the live screen. Pause when anything is unclear, stop if the probe meets resistance, and treat the result as a limited visual check—not proof that a pipe, duct, furnace, or work area is safe or free of defects.
Prepare the Camera and Inspection Area
Before inserting a plumbing camera, make sure the equipment and access point are ready for a controlled visual inspection. Keep the operator outside the pipe or other confined space, and stop if the work could involve gas, flammable vapors, toxic contamination, flooding, energized equipment, or structural instability. A camera does not make hazardous work safe; OSHA confined-space guidance describes the need to identify, evaluate, test, and control confined-space hazards before entry or related work.
Check the Equipment Before Insertion
Use this compact pre-use check:
- Inspect the probe, cable, connector, display, controls, and storage media for visible damage.
- Confirm the power source is ready and that a live image appears on the screen.
- Test the camera lighting and recording function in an open area.
- Check that the lens is clean and the cable moves without obvious snags or kinks.
- Confirm that the planned access path is compatible with the equipment instructions.
A professional CCTV workflow also begins by checking the lens and camera functions before the equipment enters the line, as described in NASSCO inspection guidance. Apply this same principle to consumer cameras, and always verify their specific waterproofing or immersion limits.
If you are comparing equipment for a drain or pipe task, plumbing inspection cameras can be a starting point. Check the current model documentation for environmental limits before you buy.
Set Up a Controlled Access Point
Use an access point that you can open, monitor, and close without losing control of the cable. Manage nearby water, sharp edges, loose covers, and trip hazards. Plan where the cable will rest so it does not scrape against an edge, kink, become trapped, or interfere with withdrawal.
Do not enter a pipe, duct, crawlspace, or other restricted area to improve the view. If access requires entry, or if you suspect a hazardous atmosphere, combustion issue, energized component, flooding, or structural problem, stop and follow the applicable safety procedure or contact a qualified service provider.
plumbing borescopes

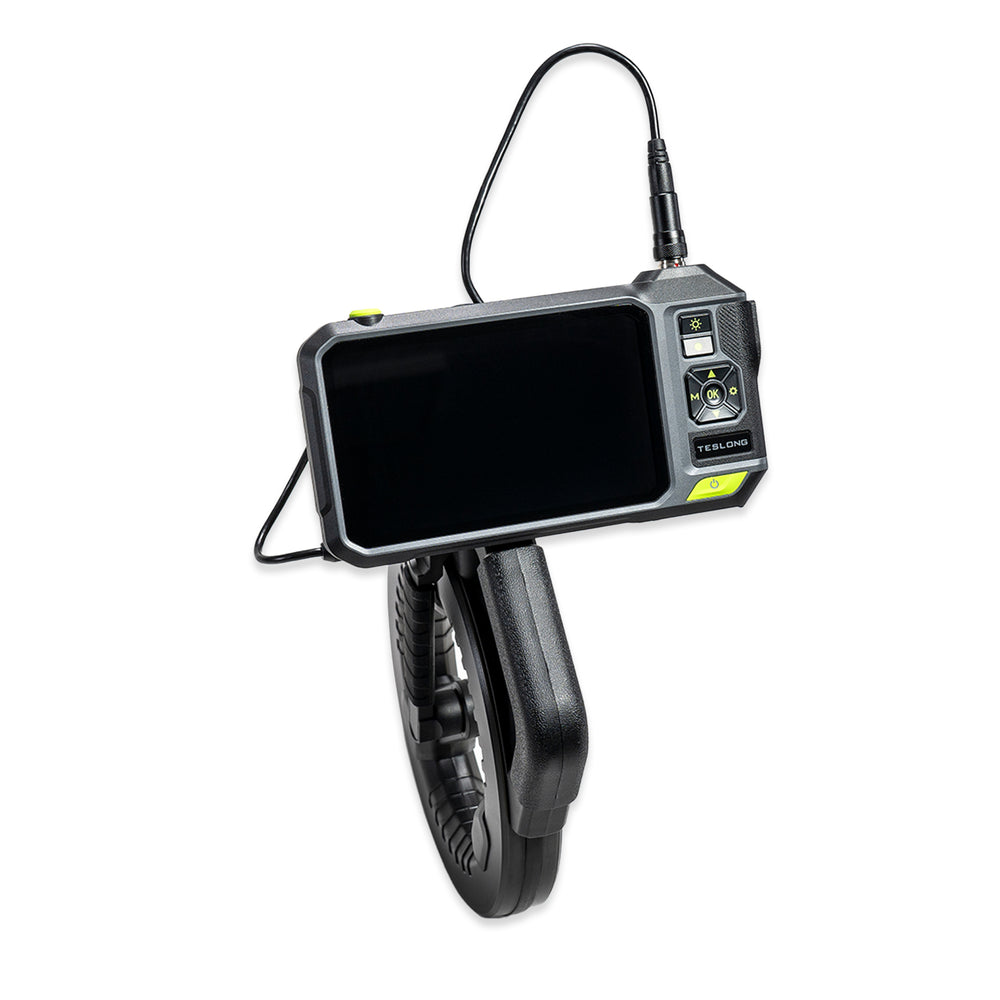

PB700 Plumbing Inspection Camera with 7-inch Screen- Single Lens
- 7-inch
Guide the Probe Through Bends and Obstacles
Use a controlled sequence: advance, pause, observe, adjust, and withdraw if needed. Let the live image guide the next movement instead of pushing on the cable. These are the basic steps for pipe camera inspection, but the product instructions govern model-specific handling limits.
Advance in Short, Controlled Movements
- Advance the probe a short distance while watching the live image.
- Pause and check whether the view still shows the intended path.
- Observe the bend, obstruction, residue, water, or opening before moving again.
- Adjust the angle or cable position only if it improves the view without adding pressure.
- If resistance continues, stop pushing and withdraw only as the instructions allow.
The central rule is simple: do not force the probe past an obstruction or sharp offset. Utility inspection procedures likewise direct operators to watch the monitor, keep the camera moving freely, and avoid forcing it, as shown in this CCTV operating procedure. If controlled withdrawal does not release the probe, stop and seek qualified help rather than pulling harder.
Handle Traps, Tight Bends, and Dark Voids
A sink trap, elbow, offset, narrowed passage, or unseen void can snag the probe and distort the image. A camera for tight pipe traps should be judged by the documented access and handling limits of the specific model—not simply by the fact that its tip fits through the opening.
If the image becomes dark, reflective, wet, or confusing, do not assume you have found damage. Pause, change the viewing angle or illumination, and reassess. If the probe cannot pass without force, use another access point or a different inspection approach. Anything the camera cannot reach remains uninspected; do not infer its condition from a nearby view.
Capture and Interpret a Usable Inspection View
A moving image becomes useful evidence only when you improve the view and preserve its context. Treat footage as a limited visual record, not proof that concealed problems are absent; sewer-scope standards describe this limitation.
| Inspection action | What to watch for | Record to make |
|---|---|---|
| Center and stabilize the view | Debris, water, discoloration, gaps, or a restricted passage | A close-up plus the surrounding path |
| Adjust angle or lighting | Glare, droplets, shadows, or lens contamination | Whether the appearance changed after adjustment |
| Pause at a possible finding | An apparent obstruction or surface change | Access point, travel direction, and approximate position |
| Review the whole path | Areas the probe passed, stopped before, or could not enter | Original file and a note of uninspected areas |
Swipe to compare →
Improve Image Quality at the Target
When you reach a possible finding:
- Pause instead of letting the probe pass the area immediately.
- Center the view and adjust the angle or lighting.
- Consider whether glare, droplets, residue, or a dirty lens is affecting the image.
- Repeat the view from a slightly different position when you can do so without forcing the probe.
- Clean the lens only by a method permitted in the camera instructions.
Official CCTV inspection guidance connects a clear, focused view with useful documentation, but its professional thresholds should not be applied to a general consumer workflow. If the image remains unclear, record that limitation rather than turning uncertainty into a diagnosis.
Record Findings With Location Context
Use a close-up and a wider context view together. Note the access point, direction of travel, and approximate cable position when available. Save the original recording or representative segment before editing or sharing it, and note what the camera could not reach.
The record can support a repair conversation, but it does not establish that concealed conditions are absent or that the system is safe, code-compliant, or fully diagnosed. Testing or a qualified evaluation may still be needed.
Adapt the Inspection to Plumbing, Ducts, and Furnaces
The inspection goal changes with the environment. Plumbing work usually follows a reachable flow path and looks for apparent obstructions or residue. Duct- and furnace-related work should remain a limited visual check from a suitable access point; it cannot establish air quality, safe operation, combustion condition, code compliance, or equipment suitability.
Plumbing and Drain Passages
For a sink trap, branch line, or drain passage, record the access point first. Then observe the path, apparent obstruction, water or residue, and any change while advancing or withdrawing. A pre-repair inspection is most useful when it connects the visible condition to the fixture or opening where the camera entered.
| Plumbing situation | Viewing priority | Useful record | Stop concern |
|---|---|---|---|
| Sink trap or branch line | Trap turns, residue, standing water, and apparent blockage | Fixture or access point and direction of travel | Resistance, snagging, or a view obscured by water or debris |
| Larger drain path | Reachable path, changes in the passage, and apparent obstruction | Wider context with the location of the observation | A probe that will not pass or withdraw freely |
| Pre-repair check | Condition relevant to the planned repair area | Original footage and areas not inspected | A finding that requires testing, repair, or cause confirmation |
Swipe to compare →
If you need more background before investigating a suspected clog, this plumbing blockage inspection resource provides additional context. Do not treat any camera view as proof that the entire line is clear.
Duct and Furnace-Related Access Points
For ducts, use the camera only to view reachable surfaces or apparent obstructions from a controlled access point. A clean-looking section does not prove that hidden branches, insulation, air quality, or structural conditions are satisfactory.
For a furnace-related passage, use a visual-check approach only when the access point and current equipment instructions permit it. Do not use a camera to infer safe combustion, gas integrity, high-heat suitability, energized electrical safety, or code compliance. Gas odor, combustion concerns, heat, energized parts, suspected hazardous material, structural instability, or uncontrolled access are stop conditions. OSHA’s hazardous-location interpretation supports treating suspected hazardous or flammable locations as an escalation issue rather than assuming ordinary equipment is approved.
This conservative approach is the basis of HVAC inspection considerations: use the camera to document reachable visual conditions, not to replace a qualified HVAC evaluation.
| Environment | Visible goal | What to document | Stop or escalate when |
|---|---|---|---|
| Plumbing passage | Reachable path, apparent obstruction, water, or residue | Access point, direction, and representative footage | The probe resists, snags, or the finding needs testing |
| Duct access point | Reachable surface or apparent obstruction | Access location and limits of the view | Access is uncontrolled or air-quality or structural concerns arise |
| Furnace-related access | Limited view of a permitted, reachable surface | What was visible and what was not assessed | Gas, combustion, heat, electrical, hazardous-material, or code questions arise |
Swipe to compare →
Finish the Inspection and Clean the Equipment
Close out the inspection in an order that protects both the record and the equipment:
- Withdraw the probe while watching for snags, and stop if resistance changes unexpectedly.
- Preserve the original photos or video before ending the session or clearing storage.
- Remove residue and clean the probe, cable, lens, display, and connectors only as the current model instructions allow.
- Dry the equipment only by the instructed method; do not assume immersion, chemicals, or air-drying times are acceptable.
- Inspect for damage, unusual heat, contamination, or a loose connector.
- Store the camera in a protected place, with the cable supported rather than sharply bent.
Institutional camera procedures also emphasize cleaning, wiping down associated equipment, and protecting the case after use, but the exact chemical and connector treatment must come from the applicable manufacturer instructions, as noted in this operating procedure. If contamination may be hazardous, keep the equipment away from clean surfaces and obtain qualified guidance before handling it further.
Match a Plumbing Camera to the Inspection Conditions
Choose equipment based first on the access path and documented environment. Then compare viewing and lighting, cable handling, recording and review, power, service, and warranty documentation. Do not assume that a camera intended for plumbing is also suitable for ducts, furnaces, gas, high heat, energized parts, or hazardous locations.
| Inspection condition | Selection criterion | Verify before buying | Not-a-fit boundary |
|---|---|---|---|
| Narrow or curved plumbing access | Probe access and cable handling | Current probe, cable, and bend guidance | Do not rely on appearance or a generic diameter claim |
| Moisture, standing water, or residue | Documented environmental limits | Water, immersion, cleaning, and contamination instructions | Stop when the rating or environment is uncertain |
| Dark or reflective passage | Viewing and lighting controls | How the model handles lighting and image review | Poor footage cannot be fixed by interpretation alone |
| Repair documentation | Recording and file review | Recording method, storage, export, and file access | Do not assume recording features from a product title |
| Repeated maintenance work | Power, support, and service documentation | Current power, runtime, warranty, and care details | Do not invent runtime or service coverage |
Swipe to compare →
After these conditions are clear, the PB800 plumbing camera is a solid option to consider for these specific tasks. Its current documentation must confirm the access, environmental, recording, cleaning, and support requirements for your task. Always verify the manufacturer’s specifications regarding duct, furnace, gas, high-heat, or hazardous-location compatibility before use.
Plumbing Camera Inspection FAQs
Use these questions to check wet-use limits, furnace boundaries, stuck-probe situations, and when a visual inspection should give way to qualified service.
Can I Use a Plumbing Camera in Standing Water?
Only if the current model documentation covers the expected exposure. If the rating is uncertain, do not proceed: you could damage the equipment or end up with misleading footage.
Is a Plumbing Camera Suitable for Furnace Inspection?
Only for a permitted visual check of reachable surfaces. Escalate questions about heat, gas, combustion, electrical systems, or code compliance to a qualified HVAC professional.
What Should I Do If the Camera Gets Stuck in a Pipe?
Stop applying force. Attempt controlled withdrawal only within the product instructions; if the probe will not release or appears damaged, seek professional help.
When Should I Stop the Inspection and Call a Professional?
Stop for gas odor, combustion concerns, energized parts, structural instability, flooding, hazardous contamination, uncontrolled access, or a trapped probe. Escalate as well when the decision requires testing, repair, code interpretation, or a diagnosis beyond the visual record.
