7 Essential Tips for Using an Inspection Camera in Tight Spaces

Mastering Precision Inspections in the Most Challenging Spaces

In the realm of modern technology, inspection cameras have emerged as invaluable tools for tackling the challenges of tight and confined spaces. Whether you're navigating the labyrinthine ducts of a ventilation system, exploring the dimly lit recesses of a crawl space, or venturing into the mysteries of an attic, a specialized camera designed for tight spaces can make all the difference.

In this blog post, we will delve into the multifaceted world of inspection cameras, focusing on their critical role in various applications. We'll explore the purpose and advantages of duct inspection cameras, crawl space cameras, attic inspection cameras, and vent inspection cameras. These compact and versatile devices not only facilitate thorough examinations in cramped quarters but also enhance safety and efficiency.

Join us as we uncover the many ways in which these innovative tools have revolutionized the field of inspection, shedding light on the hidden corners of our living and working spaces, and ensuring that no detail goes unnoticed. Whether you're a professional tradesperson or a homeowner looking to tackle DIY projects, this post will illuminate the importance of investing in the right camera for tight spaces.

Choosing the Right Inspection Camera

Duct Inspection Cameras: Duct inspection cameras are indispensable tools for HVAC professionals and homeowners alike. They are specially designed to navigate the intricate network of air ducts, vents, and pipes found within buildings. These cameras are typically equipped with long, flexible cables and small, high-resolution lenses, allowing them to reach deep into ductwork and capture detailed images and videos. The ability to inspect ducts with precision is crucial for maintaining indoor air quality, identifying blockages, and ensuring optimal system performance. Duct inspection cameras not only save time and money but also contribute to better energy efficiency and healthier living environments.

Crawl Space Inspection Cameras: Crawling beneath a building's foundation or through a cramped crawl space can be a daunting task. However, crawl space inspection cameras make this job far more manageable and efficient. These cameras are designed to withstand the challenging conditions often encountered in such environments, including moisture and tight spaces. With their compact size and flexible probes, they provide visual access to areas that would otherwise be difficult to inspect. Whether checking for structural issues, plumbing leaks, or pests, crawl space inspection cameras are invaluable for both professionals and homeowners seeking to maintain the integrity and safety of their properties.

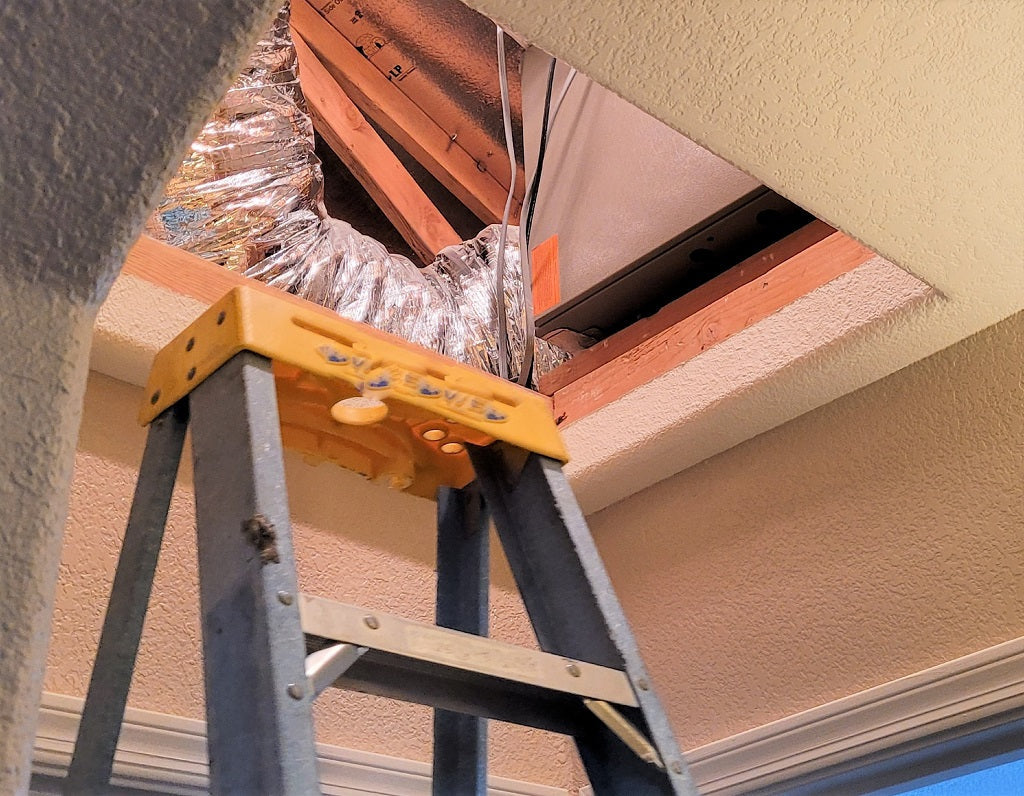

Attic Inspection Cameras: Attics are another area where inspection cameras prove their worth. These spaces are often dark, cramped, and difficult to access. Attic inspection cameras come equipped with adjustable LED lights and flexible probes that allow users to explore every nook and cranny. They are ideal for checking insulation, identifying leaks, spotting pests, and ensuring the overall condition of the attic space. By using attic inspection cameras, individuals can save time, reduce the risk of injury, and make informed decisions about necessary repairs or improvements, ultimately contributing to the comfort and energy efficiency of their homes.

In summary, these specialized inspection cameras cater to the unique challenges posed by ducts, crawl spaces, and attics. They empower professionals and homeowners to conduct thorough assessments, diagnose problems, and maintain the integrity and functionality of critical building components.

Considerations when selecting a camera for tight spaces

When choosing a camera for tight spaces, several key considerations can make a significant difference in the effectiveness of your inspections.

Size and Portability: The camera's size and portability are crucial factors. A compact and lightweight design allows for easy maneuverability in confined areas. Look for a camera that won't add bulk or weight to your toolkit, ensuring you can access even the most cramped spaces with ease.

Camera Head Flexibility: The flexibility and articulation of the camera head are vital for navigating around corners, bends, and obstacles. A camera with a highly flexible head or an articulating tip provides better control and visibility, enabling you to capture images and videos from various angles within tight spaces.

Resolution and Image Quality: The quality of the images and videos captured is paramount. Opt for a camera with high-resolution capabilities to ensure clear and detailed visuals. This feature is essential for accurate inspections, as it allows you to spot small defects or issues that might go unnoticed with lower-quality cameras.

In summary, a camera's size, flexibility, and image quality are essential factors to consider when selecting the right tool for tight-space inspections. These considerations will help you maximize efficiency and accuracy while working in confined areas.

Preparing for the Inspection
Safety is paramount when using inspection cameras in various environments. Here are key precautions to follow:

• Proper Training: Ensure users are adequately trained in operating the camera to avoid accidents and mishandling.
• Electrical Hazards: When inspecting electrical systems, turn off power sources to prevent shocks or short circuits.
• Confined Spaces: In tight spaces, be cautious of entrapment and ensure proper ventilation to prevent asphyxiation.
• Trip Hazards: Watch out for tripping hazards created by camera cables, and secure them to prevent accidents.
• Eye Protection: Wear safety goggles to shield your eyes from debris or splashes during inspections.
• Secure Footing: Maintain stable footing, especially when reaching into elevated or awkward spaces to avoid falls.
• Chemical Exposure: In industrial settings, protect against chemical exposure by using appropriate gear.
• Follow Manufacturer's Guidelines: Adhere to the manufacturer's safety recommendations and guidelines for the specific camera model in use.

By prioritizing safety measures, users can harness the benefits of inspection cameras while minimizing potential risks.

Assessing the tight space

Assessing a tight space involves two critical steps:

1. Measuring Dimensions: Begin by accurately measuring the width, height, and depth of the confined area using appropriate tools like a tape measure. This measurement ensures that the inspection camera and any associated equipment can fit comfortably within the space.
2. Identifying Potential Obstacles: Carefully inspect the space for potential obstacles or hazards such as protruding objects, sharp edges, or electrical wires. Identifying these obstacles in advance helps plan the camera's path and avoids potential damage or entanglement during the inspection.

By combining precise measurements with obstacle identification, you can ensure a safe and effective inspection in tight spaces.

Assembling the camera and accessories

Before entering the tight space, assemble the camera and its accessories according to the manufacturer's instructions. Ensure all components are securely attached, and the camera is calibrated for optimal performance.

Lighting and Visibility

• Importance of Proper Lighting: Proper lighting is paramount in inspection work as it directly impacts visibility and the quality of captured images or video. Inadequate lighting can obscure details, making it challenging to identify problems accurately. On the other hand, sufficient illumination enhances clarity, enabling you to spot issues with precision, whether in dark corners, ducts, or crawl spaces.
• Using Built-in LEDs or External Light Sources: Many inspection cameras come equipped with built-in LED lights near the camera head. These LEDs can be pivotal in illuminating the inspection area. In cases of extreme darkness, external light sources such as flashlights or additional LEDs can be used to supplement the camera's built-in lighting, further enhancing visibility in challenging conditions.
• Adjusting Camera Settings for Optimal Visibility: Depending on the camera model, adjusting settings like brightness, contrast, and exposure can optimize visibility. Fine-tuning these settings ensures that the captured visuals are clear and detailed, allowing for accurate analysis and decision-making during inspections.

In conclusion, proper lighting, whether from built-in LEDs or external sources and adept camera setting adjustments are essential for achieving optimal visibility and ensuring the success of inspection tasks.

Navigating Cramped Spaces

Navigating cramped spaces with an inspection camera can be challenging, but these tips can help you:

1. Tips for Maneuvering the Camera Head:

• Start with a wide-angle view to get your bearings, then zoom in as needed.
• Use slow, controlled movements when tilting or panning the camera head.
• Rotate the camera head to change the viewing angle gradually.

2. Using a Flexible Cable for Tricky Angles:

• Take advantage of the camera's flexible cable to access tight corners and angles.
• Bend the cable gently to navigate around obstacles while avoiding excessive force.

3. Maintaining a Steady Hand:

• Steadiness is crucial for clear images. Brace your arm against a stable surface when possible.
• Use both hands to hold the camera and maintain better control.

4. Being Patient and Methodical:

• Avoid rushing; methodically explore the space to capture all necessary details.
• If you encounter an obstacle or challenging area, take your time to assess and navigate it carefully.

These tips will help you effectively navigate cramped spaces, ensuring thorough and successful inspections with your camera.

Recording and Documentation

Recording and documenting findings with an inspection camera is essential for a comprehensive and effective inspection process.

1. Capturing Clear Images and Videos: High-quality images and videos provide a visual record of the inspection, serving as valuable documentation. Ensure your camera is set to the highest resolution and optimal lighting conditions for clear, detailed visuals. Capturing the full scope of the area being inspected is crucial for accurate assessments.
2. Annotating Important Findings: As you capture images or videos, take advantage of annotation features if available. Marking up the visuals with notes, arrows, or labels can highlight critical findings, making it easier to communicate and reference specific issues later. These annotations add context and clarity to your documentation.
3. Organizing Inspection Data: Proper organization is key to effective documentation. Create a structured system for storing and categorizing inspection data. This might include labeling files, creating folders for different projects, and maintaining a detailed log of inspection dates, locations, and findings. A well-organized database simplifies the retrieval and analysis of information, facilitating informed decision-making and follow-up actions.

In summary, recording and documenting with an inspection camera ensures that inspection data is thorough, accessible, and actionable. It enhances the overall effectiveness of inspections and supports better decision-making processes.

Troubleshooting and Maintenance

Dealing with common issues

1. Cable Tangles: Cable tangles are a common issue during inspection camera use, especially in confined spaces. The flexible cable can become twisted or tangled, impeding the camera's movement and visibility. To prevent this problem, practice careful cable management by gently guiding the cable as you maneuver the camera and periodically checking for knots or tangles. Proper coiling and storage of the cable when not in use can also help mitigate this issue.

2. Camera Head Jams: Camera head jams occur when the camera head gets stuck or wedged in a tight space, preventing further movement or retrieval. To avoid this problem, exercise caution when navigating through confined areas and ensure that the camera's dimensions are compatible with the space. If a jam occurs, carefully retract and reposition the camera, taking care not to force it, to avoid damage or exacerbating the issue.

Cleaning and maintaining your inspection camera

Cleaning and maintaining your inspection camera is crucial for its longevity and performance. After each use, wipe down the camera head and cable with a clean, damp cloth to remove dust, debris, or residues. Avoid using abrasive materials that may scratch the lens. Periodically inspect the cable for any signs of wear, such as fraying or kinks, and replace damaged parts promptly. Check the camera's LEDs and lighting for proper functionality. Store the camera in a protective case or pouch to prevent dust and damage when not in use. Regular maintenance ensures your inspection camera remains reliable, providing clear and accurate results during critical inspections.

Regular calibration and testing

Regular calibration and testing of inspection cameras are essential practices to maintain accuracy and reliability. Periodically verify that the camera's image and video quality align with established standards. Check the camera's articulation, zoom, and lighting functions to ensure they perform as intended. Regularly calibrate distance and measurement features for precision. Additionally, test the camera's flexibility and cable integrity to avoid unexpected issues during inspections. Routine calibration and testing procedures help identify any deviations or malfunctions, allowing for timely adjustments or repairs, ultimately ensuring that your inspection camera continues to deliver accurate and dependable results in critical applications.

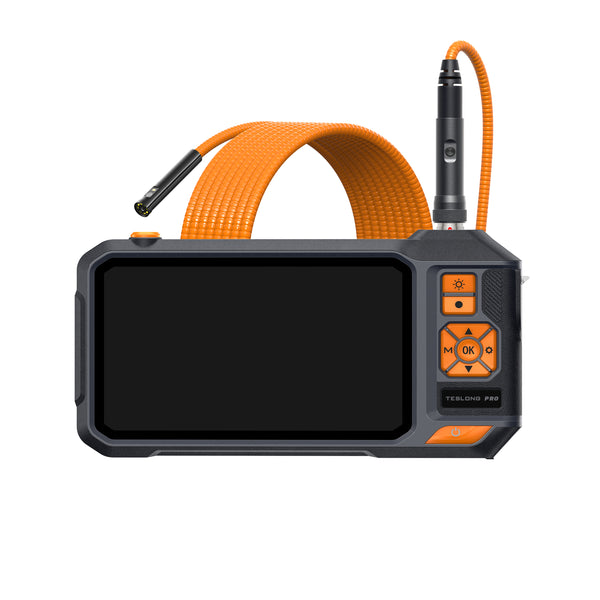

Shop Teslong Crawl Space Cameras & Inspection Cameras

Eight Essential Tips for Using an Inspection Camera in Tight Spaces:

1. Size Matters: Ensure your camera is compact and portable to navigate confined areas easily.
2. Flexibility is Key: Utilize the camera's flexible cable to access tricky angles and corners.
3. Steady Hand: Maintain a steady hand for clear images, bracing against stable surfaces when possible.
4. Slow and Controlled Movements: Maneuver the camera head with deliberate, controlled movements for precision.
5. Thorough Assessment: Patiently and methodically inspect the space, leaving no stone unturned.
6. Proper Lighting: Adequate lighting is essential; use built-in LEDs and external sources when needed.
7. Documentation: Record findings with clear images and annotations, and organize data systematically.
8. Gain Experience for Thorough Inspections: Remember, practice makes perfect! Becoming proficient with your inspection camera takes time and experience. Thorough inspections in cramped spaces are vital for maintaining safety, identifying issues, and making informed decisions. Your ability to diagnose and address problems will improve significantly as you gain proficiency.

Ready to enhance your inspection capabilities? Shop Teslong for a range of reliable inspection cameras today!

Visit Teslong's website to explore our selection of high-quality inspection cameras and start conducting thorough inspections in tight spaces with confidence!
