Best Practices for the Cylinder Camera in Deep Engine Inspections

A cylinder camera helps you spot likely damage, avoid misreading glare or residue, and decide whether a deeper test is worth the time. It is best used as a screening tool, not a final verdict. If the image looks suspicious, the next step is usually confirmation testing, not immediate teardown.

The Mechanics of Cylinder Damage: Specific Signs of Wear

Normal Wear Patterns to Expect

Start by comparing the cylinder to what a healthy surface can look like. Light crosshatch, a mostly even sheen, mild discoloration, and small carbon deposits can still fit routine use. On valves, a healthy valve deposit pattern is often a symmetrical bullseye or burnt-pizza look, which gives you a useful baseline before you call something damaged.

The key is not to treat every mark as a failure. A cylinder camera is most useful when it helps you separate expected texture from a change that needs more attention.

Visible Red Flags That Need Follow-Up

Deep vertical scratches, repeated grooves, chipped areas, obvious metal transfer, and heavy scoring deserve a closer look. Some surface texture can still be normal, but a mark that stays directional and stands out from the surrounding wall is more concerning than a faint shadow or dust line. In some engines, lower-cylinder damage can hide from the spark-plug hole, so a quick view from above may miss the most important area.

Wet oil, burned-looking deposits, and uneven pitting can also be clues, but they still need context. One frame rarely tells the whole story.

How Lighting Changes What You See

Bright LEDs can make shallow marks look deeper than they are, especially if the probe is angled across the wall. Oil film and residue can do the opposite and hide a line that is really there. If a mark matters, rotate the probe, change the angle, and capture more than one view before you decide what it means.

For most DIY inspections, the practical rule is simple: compare the image to the expected surface first, then ask whether the mark is deep, repeated, and still visible from another angle. If not, it may be reflection rather than damage. Automotive borescope basics can help if you want a quick refresher on setup and viewing habits.

Diagnose Cylinder Scoring and Valve Burnt Valves

What Cylinder Scoring Usually Looks Like

Cylinder scoring usually shows up as vertical grooves or repeated lines, not random discoloration. The most useful comparison is depth and direction. The GM bulletin defines scoring as vertical grooves deep enough to be felt with a fingernail, and it notes that visible crosshatch can still point to a serviceable bore when the texture remains even around the cylinder. That is why a few faint marks should not be treated the same as a groove that clearly breaks the surface. Vertical grooves that catch a fingernail are the kind of clue that deserves follow-up.

A cylinder camera can document the pattern, but it should not be asked to explain the root cause by itself. Ring wear, oil control issues, and other faults can create similar-looking signs.

What Burnt Valves Can Look Like

Valve damage often reads differently from wall damage. A healthy valve can show that symmetrical bullseye pattern, while a burnt or leaking valve may show irregular discoloration, uneven edges, or deposits that do not match the surrounding chamber. The contrast matters because a cylinder-wall clue and a valve-face clue are not the same diagnosis path.

If the pattern is unclear, treat it as a suggestion rather than a conclusion. A visual clue is useful when it tells you where to keep testing, not when it claims certainty. That is especially true if the engine also has misfire, compression, or leak-down symptoms. A symmetrical valve pattern to compare against is a good reminder not to overread discoloration alone.

Why the Bottom of the Bore Matters

Some scoring starts lower in the bore and is hard to see from the spark-plug opening until the damage is more advanced. That means a cylinder camera may show the upper wall clearly while the lower section still hides the first real clue. If the visible area looks clean but the symptom persists, do not assume the cylinder is fine.

A good inspection note is specific: where the mark appears, how deep it looks, whether it repeats, and whether it changes with angle. That gives you a better handoff for the next test.

Select the Best Borescope for Cylinder Inspection

Standard Scopes vs. Specialized Automotive Scope Cameras

A standard scope can work for occasional checks, but a specialized automotive scope camera is usually the better fit when you need repeatable cylinder access through a spark-plug opening. For deep engine work, the feature order matters: first fit, then viewing control, then image clarity. Probe size and articulation matter most because a camera that does not enter cleanly or cannot point where you need it will not give you a useful picture.

For a buyer comparing the best borescope for cylinder inspection, the question is not "Which one has the most features?" It is "Which one can enter the cylinder, show the area you care about, and give you a readable image?" If you only need a one-time look, a general tool may be enough. If you inspect engines often, the automotive-focused setup is usually the safer buy.

Features That Matter Most in Deep Cylinders

Probe diameter comes first because no image matters if the probe does not fit. After that, articulation or other viewing control helps you see valves and chamber surfaces instead of only the nearest wall. Resolution and screen readability matter next because a blurry image can make you misread a harmless stain as damage.

Storage and battery life matter too, but mostly for convenience and review. If you want to document an engine issue, a built-in screen and local storage make it easier to compare frames after the inspection. The best borescope for cylinder inspection is the one that matches your access, lets you aim at the problem area, and keeps the image readable enough to trust.

Featured

NTS500 Dual Lens Inspection Camera with 5-inch Screen

Automotive/Industrial Home/DIY

¥48,100 - ¥53,800

Buy Now

If you are comparing options on Teslong, the automotive endoscope cameras path is the most natural place to start for engine-focused browsing. The dual-lens inspection camera is a useful fit check for spark-plug-hole work, and the 5-inch inspection camera is another option to compare if you want a compact screen-first setup. Check the probe diameter and viewing mode before you buy.

Step-By-Step Tutorial to Insert a Cylinder Camera Safely

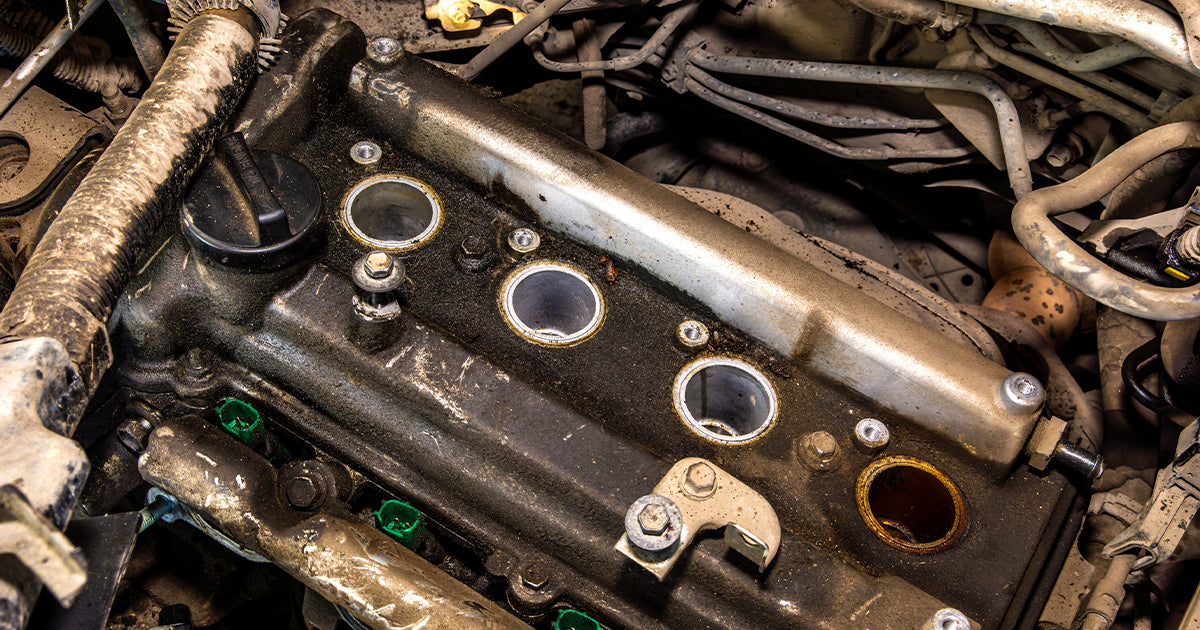

1. Prep the engine bay. Let the engine cool, disconnect what you need for safe access, and clean loose dirt around the spark-plug opening so debris does not fall into the cylinder.
2. Verify the opening. Check that the plug hole is clear enough for the probe you plan to use and that you are not forcing the tool into a tight or damaged edge.
3. Center the probe. Guide the tip straight in instead of pushing it against the side of the opening. A centered entry lowers the chance of scraping the lens or the cylinder lip.
4. Advance slowly. Move the probe in small steps and stop if you feel resistance. Do not pry, twist hard, or force the camera past an obstruction.
5. Scan methodically. Look at the upper wall first, then the midsection, then the lower area if the probe can reach it. Use small angle changes so lighting does not mislead you.
6. Capture more than one view. Save stills or short clips from different angles. A single glare-heavy frame is not enough to call damage.
7. Withdraw carefully. Pull the probe back slowly, keep the tip centered, and avoid dragging it across the plug hole on the way out.
8. Stop on abnormal contact. If the probe binds, the image disappears, or the tool feels like it is rubbing metal, stop and reset instead of forcing the inspection.

For practical use, the two biggest mistakes are pushing too hard and trusting the first image too much. A careful pass is slower, but it protects both the probe and the engine opening.

Interlink Diagnostics to Repair: Next Steps for DIYers

If the cylinder camera shows only light wear, carbon, or a mark that changes a lot with angle, the next step may be cleaning, monitoring, or retesting after you confirm the symptom. If you see deep scoring, irregular wall damage, or a valve pattern that looks clearly off, move to compression or leak-down testing before you order parts or plan teardown. Continental's rule that borescope findings need confirmation testing before repair decisions is the right boundary for this step.

That is the clean decision rule: visual clues tell you where to look next, but pressure testing tells you how serious the problem really is. If the visual finding and the test result disagree, trust the combined diagnosis rather than the camera alone. For readers comparing automotive borescope options, we recommend checking spark-plug-hole fit first, then choosing the viewing control that matches the cylinder work you actually do.

Final Takeaway

A cylinder camera works best when you treat it as a screening tool: identify the pattern, compare it to healthy wear, and then confirm suspicious findings with compression or leak-down testing. If you are buying one, start with probe fit, then look at viewing control and image clarity. Compare automotive scope camera options, verify spark-plug-hole fit, and use the image to decide whether the next step is cleaning, retesting, or escalation. If the picture looks wrong, do not guess—confirm it.

FAQs

How Do I Know If Cylinder Wear Is Normal or a Problem?

Light crosshatch, mild discoloration, and small carbon deposits can still be normal. The signal to worry about is a deep, repeated groove, heavy scoring, or a pattern that stays obvious from more than one angle. If the mark changes a lot with lighting, treat it as a clue to verify rather than a failure.

What Does Cylinder Scoring Look Like on a Borescope?

It usually looks like vertical lines or grooves that stand out from the surrounding texture. The practical check is depth and repetition: a faint line that follows the normal surface is less concerning than a groove that clearly breaks the wall. If the image is uncertain, compare another angle before deciding.

Can a Cylinder Camera Show Burnt Valves?

It can suggest them, but it cannot prove them on its own. Look for irregular discoloration, odd deposits, or edge damage that does not match nearby surfaces. If the valve pattern seems off and the engine is also misfiring or losing compression, follow with testing before you assume the valve is the only problem.

What Features Matter Most in a Deep Engine Inspection Borescope?

Probe diameter comes first, because fit decides whether the camera enters cleanly. After that, prioritize viewing control or articulation, then image clarity, then screen and storage convenience. If the probe cannot reach the cylinder or point where you need it, the rest of the specs matter much less.

Should I Use a Dual-Lens Probe for Cylinder Inspection?

A dual-lens probe helps when you need both straight-ahead and side-view access in the chamber. It is most useful if you already know how to move the probe comfortably in the engine bay and the diameter still fits the spark-plug opening. If fit is tight, verify that first before choosing lens count.
